JBL Control 40CS/T High-Impact, Passive In-Ceiling Subwoofer (Each)
SKU
CONTROL 40CS/T
$605
$576
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept

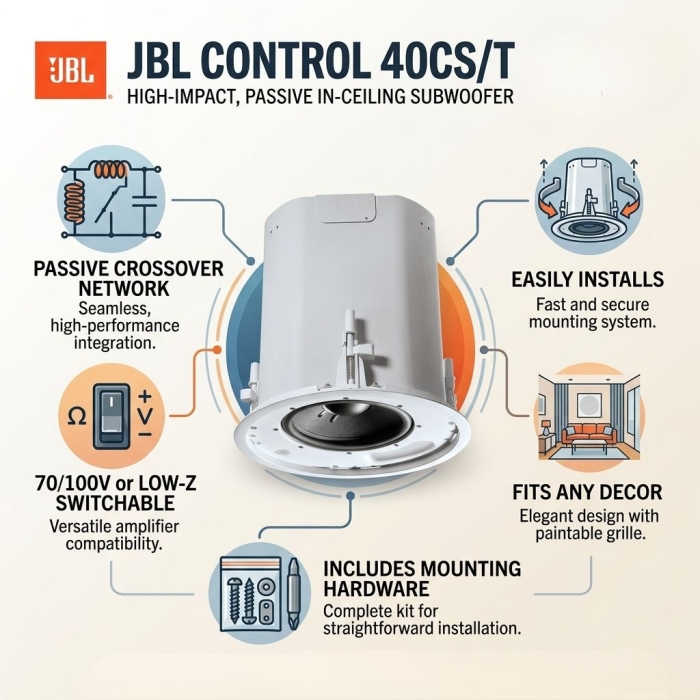

Quick Overview
- Passive Crossover Network
- Easily Installs
- 70/100V or Low-Z Input Switchable
- Fits Any Decor
- Includes Mounting Hardware
PRODUCT OVERVIEW

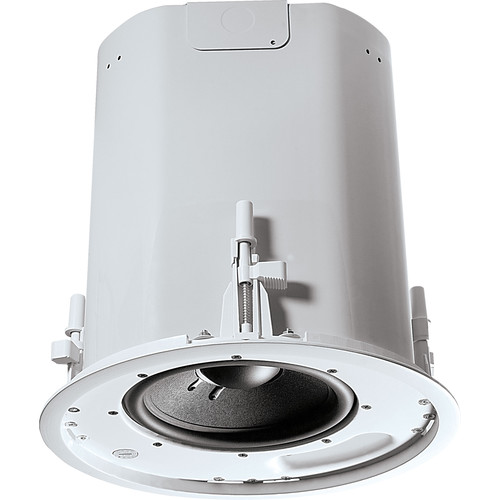

High-Impact In-Ceiling Subwoofer
The Control 40CS/T is a direct radiating, high-impact, 8" subwoofer with a built-in passive crossover network enabling the Control 40CS/T to be used as part of a subwoofer-satellite system. When combined with Control 42, the Control 40CS/T offers an extremely natural-sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact. The system can also be used via an active crossover design with the rest of the control contractor's in-ceiling line for superior bass response and can be operated off a 70V / 100V distributed line or in direct mode.
Features
- Extended Bass Response with Maximum Impact
- Passive Crossover Network for Easy-to-Install Subwoofer-Satellite Systems
- Switchable 70V/100V or Low-Z
- Elegant design fits any décor
| Product Name | JBL Control 40CS/T High-Impact, Passive In-Ceiling Subwoofer (Each) |
|---|---|
| Weight | 8.100000 |
| Frequency Response | 50 Hz – 180 Hz |
| Frequency Range | 32 Hz – 300 Hz |
| Power Capacity | 200W Continuous Program Power 100W Continuous Pink Noise |
| Maximum SPL | 109 dB @ 1 m (3.3 ft) average, 115 dB peak (center of ceiling) 115 dB @ 1 m (3.3 ft) average, 121 dB peak (near corner) |
| Impedance | 8 ohms (in bypass mode) |
| Sensitivity (SPL / 1 W @ 1 m) | 95 dB (near corner), 89 dB (center of ceiling) |
| Enclosure | Six removable locking 2-pin connectors with screw-down terminals; max wire 12 AWG (2.5 mm) |
| Mounting | Ceiling Mount |
| Dimensions | 332 mm diameter x 338 mm depth from back of baffle (13.1 in x 13.3 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
