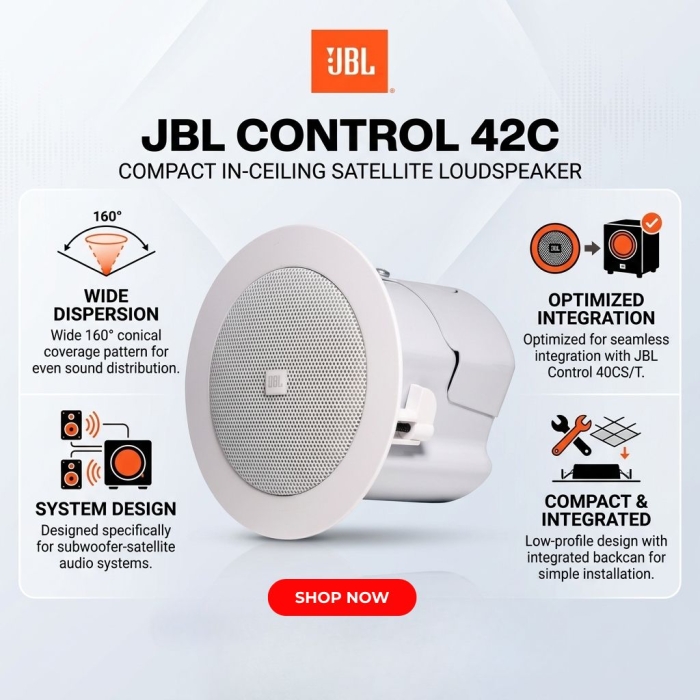

JBL Control 42C Compact In-Ceiling Satellite Loudspeaker (Each)
Quick Overview
- Ultra-compact low-visibility ceiling design
- High-fidelity mid-high frequency reproduction
- Designed for subwoofer-satellite audio systems
- Wide 160° conical dispersion pattern
- Optimized for JBL Control 40CS/T integration
PRODUCT OVERVIEW
Ultra-compact Satellite Loudspeaker
The Control 42C is an ultra-compact, in-ceiling satellite loudspeaker designed for use with the Control 40CS/T in-ceiling subwoofer. When combined with the Control 40CS/T, the Control 42C offers an extremely natural-sounding and powerful subwoofer-satellite system that is perfect for applications requiring wide bandwidth and superior sonic performance with minimal visual impact.
For full-range wide-bandwidth performance, either 2 or 4 Control 42C mid-high speakers can be driven from the Control 40CS/T subwoofer (or from a Control 50S/T surface-mount or Control 60PS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either with low impedance or from a 70V/100V distributed speaker line.
Features
- Small, Unobtrusive Size
- High-Fidelity Sound for Subwoofer-Satellite Systems
- The elegant industrial design fits any décor
| Product Name | JBL Control 42C Compact In-Ceiling Satellite Loudspeaker (Each) |
|---|---|
| Weight | 1.500000 |
| Frequency Response | 180 Hz – 17 kHz |
| Frequency Range | 140 Hz – 20 kHz |
| Power Capacity | Passive: 30 W Program |
| Maximum SPL | 94 dB @ 1 m (3.3 ft) average, 114 dB peak |
| Impedance | 16 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 82 dB (1kHz - 16 kHz) |
| Enclosure | Six removable locking 2-pin connectors with screw-down terminals; max wire 12 AWG (2.5 mm) |
| Mounting | Ceiling Mount |
| Dimensions | 127 mm diameter x 94 mm depth (5.0 in x 4.2in) from the back of the baffle |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
