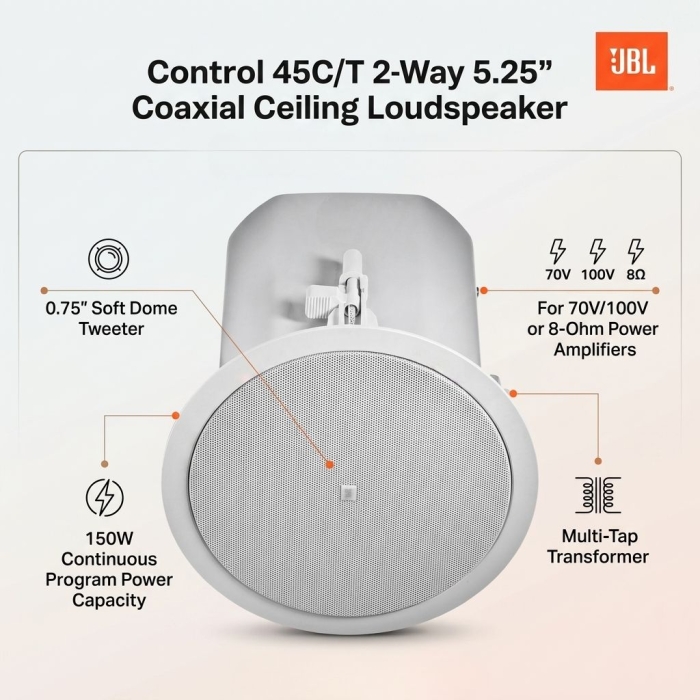

JBL Control 45C/T 2-Way 5.25" Coaxial Ceiling Loudspeaker (Each)
Quick Overview
- 5.25" Polypropylene Woofer
- 0.75" Soft Dome Tweeter
- 150W Continuous Program Power Capacity
- For 70V/100V or 8-Ohm Power Amplifiers
- Multi-Tap Transformer
PRODUCT OVERVIEW
Two-Way 5.25" Coaxial Ceiling Loudspeaker

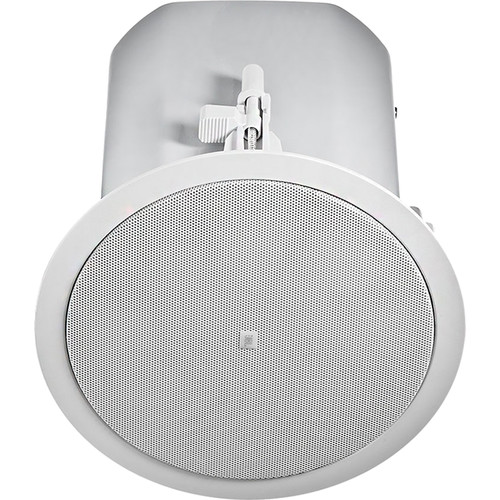

Sold as a pair, the white JBL Control 45C/T is a passive 5.25" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The 60W transformer allows the Control 45C/T to be driven by 70V, 100V, or 8-ohm power amplifiers (available separately). Each Control 45C/T is equipped with a durable 5.25" polypropylene woofer and a 0.75" soft dome tweeter, yielding a frequency response of 80 Hz to 17 kHz and a continuous program power capacity of 150 W. The included removable locking input connectors, detachable grilles, cutout templates, paint shields, and C-ring / tile rail suspension systems contribute to easy installation.
|
|
|
Features
- Extremely consistent 120° broadband pattern control featuring JBL’s exclusive conical Radiation Boundary Integrator® (RBI™) technology.
• Very consistent, full-range coverage of the listening area while providing a small ceiling footprint.
• Wide, consistent coverage requires fewer speakers, reducing the cost of the installed system without
sacrificing performance. - Coaxial design featuring:

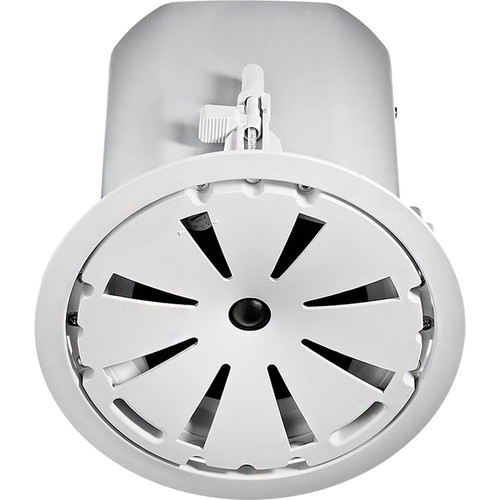

• 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround.
• 20 mm (.75 in) soft-dome tweeter on a 210 mm (8.25 in) diameter waveguide. - Bass extension down to 55 Hz.
- 8 ohm and 70V/100V operation.
- Integrated back for easy “blind-mount” install. Packaged with grill and tile rails for easy installation.
| Product Name | JBL Control 45C/T 2-Way 5.25" Coaxial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 3.900000 |
| Frequency Response | 80 Hz – 17 kHz |
| Frequency Range | 55 Hz – 20 kHz |
| Power Capacity | 150W Continuous Program Power 75W Continuous Pink Noise |
| Maximum SPL | 107 dB @ 1 m (3.3 ft) average, 113 dB peak |
| Impedance | 8 ohms (in bypass mode) |
| Sensitivity (SPL / 1 W @ 1 m) | 88 dB (1kHz - 16 kHz) |
| Mounting | Coaxial, Ceiling Mount |
| Dimensions | 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
