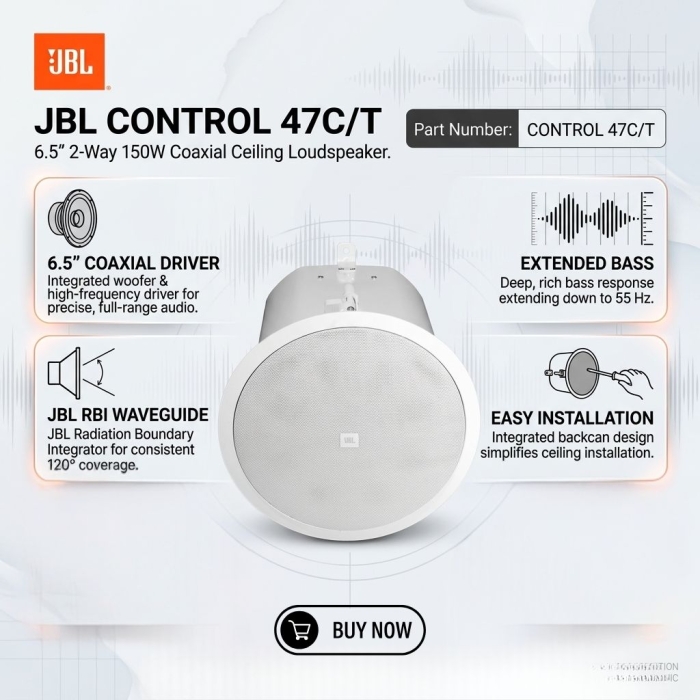

JBL Control 47C/T 6.5" 2-Way 150W Coaxial Ceiling Loudspeaker (Each)
Quick Overview
- 6.5” coaxial woofer + HF driver design
- JBL RBI waveguide for consistent 120° coverage
- Supports 70V/100V and 8Ω operation
- Extended bass down to 55 Hz
- Integrated backcan for easy installation
- Ideal for commercial distributed audio systems
PRODUCT OVERVIEW
Consistent Coverage Extended Bass
Sold as a pair, the white JBL Control 47C/T is a passive 6.5" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The 60W transformer allows the Control 47C/T to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 47C/T is equipped with a durable 6.5" polypropylene woofer and a 1" soft dome tweeter, yielding a frequency response of 75 Hz to 17 kHz and a continuous program power capacity of 150W. Removable locking input connectors, detachable grilles, cutout templates, paint shields, and C-ring / tile rail suspension systems contribute to easy installation.
|
|
|
Features
- Proprietary Conical RBI® Technology Provides Wide, Consistent Coverage
- Flat Frequency Response and Superior Performance
- Large Back for Bass Response to 55 Hz
- Elegant design fits any décor
| Product Name | JBL Control 47C/T 6.5" 2-Way 150W Coaxial Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 5.000000 |
| Frequency Response | 75 Hz – 17 kHz |
| Frequency Range | 55 Hz – 20 kHz |
| Power Capacity | 150W Continuous Program Power 75W Continuous Pink Noise |
| Maximum SPL | 110 dB @ 1 m (3.3 ft) average, 116 dB peak |
| Impedance | 8 ohms (in bypass mode) |
| Sensitivity (SPL / 1 W @ 1 m) | 91 dB (1kHz - 16 kHz) |
| Enclosure | Two removable locking 2-pin connectors with screw-down terminals; max wire size 12 AWG (2.5 mm) |
| Mounting | Ceiling |
| Dimensions | 305 mm diameter x 259 mm depth from back of baffle (12 in x 10.2 in) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
