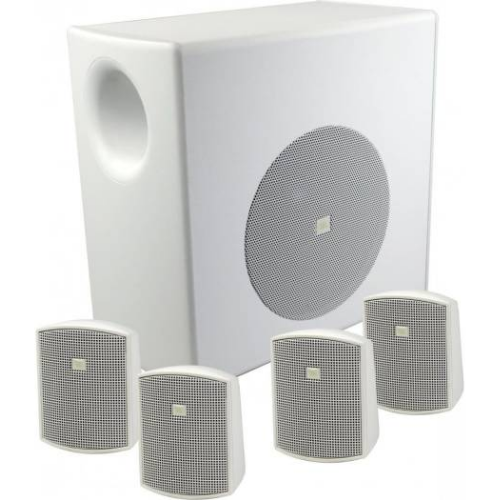

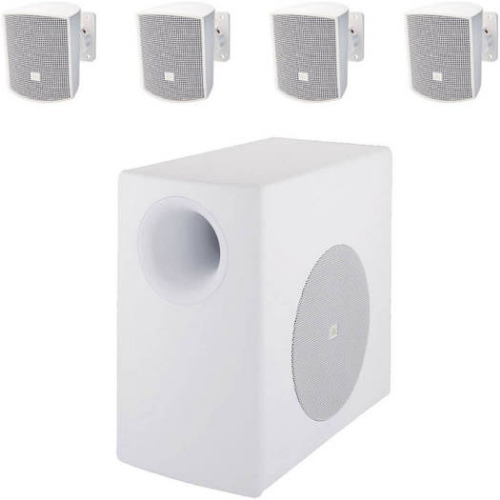

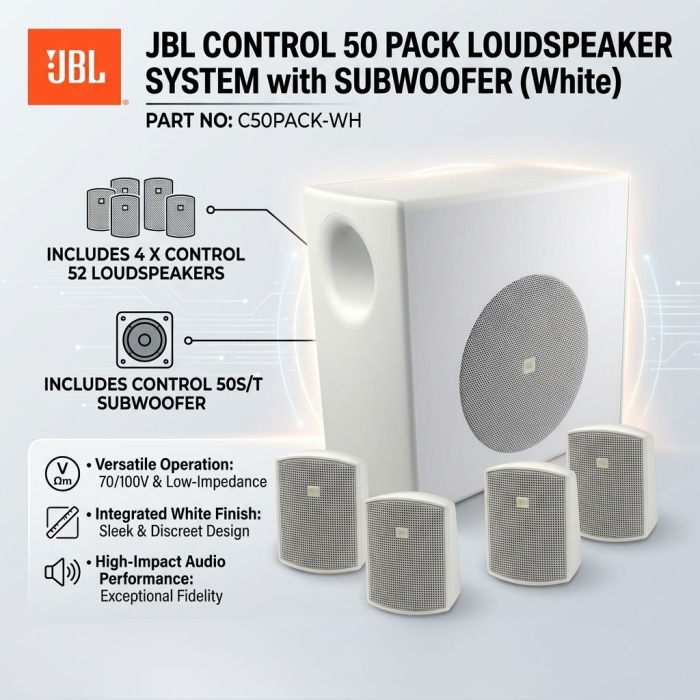

JBL Control 50 Pack Loudspeaker System with Subwoofer (White)
Quick Overview
- Includes 4 x Control 52 Loudspeakers
- Includes Control 50S/T Subwoofer
- 70/100V and Low-Impedance Operation
PRODUCT OVERVIEW
Packaged Surface-Mount Subwoofer-Satellite Loudspeaker System
Each speaker has a 2.5" driver with an efficient magnet structure, as well as a rubber half-roll surround for enhanced bass performance. The copper-clad aluminum wire voice coil is on a vented Nomex former to provide high fidelity and reliability, while the copper-capped pole piece provides consistent impedance and extended HF response. The speaker can work with 70/100V distributed lines and low-impedance systems for terrific versatility, and the included wall mounting bracket lets you angle the speaker up to 45° off-axis.
The Control 50S/T subwoofer has a slim, unobtrusive cabinet that contains a long-excursion 8" driver with a high-mass cone and a 4-layer copper voice coil for extended low-frequency response and high motor strength. The aluminum former provides excellent transient response, while a rubber half-roll surround provides enhanced bass performance.
|
|
|
Features
- Versatile four satellite speaker system
- Stylish, unobtrusive design fits into a wide variety of decor
- High-fidelity sound
- Selectable 70V/100V for distributed lines, or low impedance
- Wall-mount brackets include
- Available in black or white
| Product Name | JBL Control 50 Pack Loudspeaker System with Subwoofer (White) |
|---|---|
| Weight | 11.800000 |
| Frequency Response | 140 Hz - 20 kHz (-10 dB) |
| Frequency Range | 32 to 299 Hz (-10 dB) |
| Power Capacity | 50 W Continuous Program Power (2 Hours) 25 W Continuous Pink Noise (2 Hours) 30 W Continuous Program Power (100 Hours) 15 W Continuous Pink Noise (100 Hours) |
| Maximum SPL | 115 dB Average, 121 dB Peak (Corner) 109 dB Average, 115 dB Peak (Center) |
| Impedance | 8 Ohms (Nominal) 6.4 Ohms (Minimum) |
| Sensitivity (SPL / 1 W @ 1 m) | System: 87 dB with 4 satellites 85 dB with 2 satellites (depends on subwoofer boundary loading, see application note) |
| Enclosure | Plywood and MDF Cabinet with Zinc-Plated Metal Grille |
| Mounting | Wall Mount |
| Dimensions | 14 x 15.4 x 8" / 356 x 391 x 203 mm |
| Manufacturer | JBL |
| Color | Different Colors |
| Country of Origin | United States |
Product Datasheet
