JBL Control 52 Surface-Mount Satellite Loudspeaker Black (Pair)

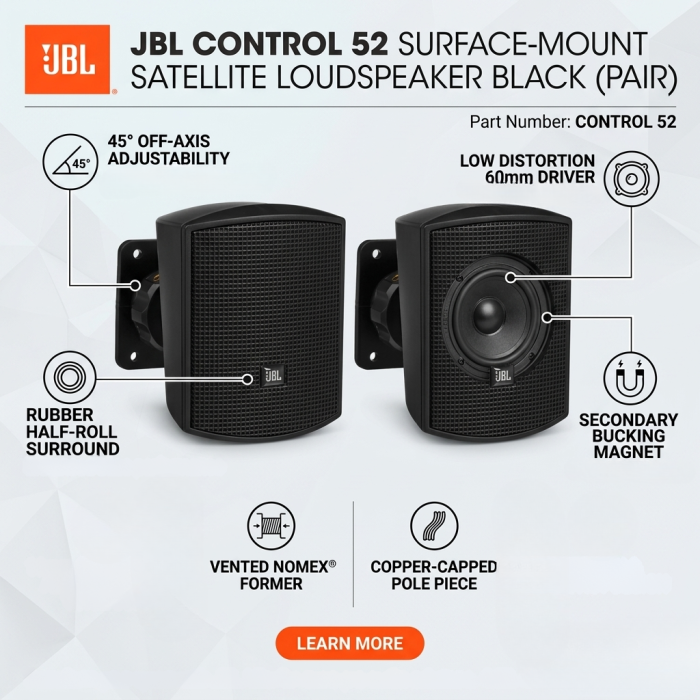

The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half-roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high-frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
PRODUCT OVERVIEW
Surface-Mount Satellite Speaker for Subwoofer-Satellite Loudspeaker System
The stylish Control 52 satellite loudspeaker produces superb high fidelity sound via a low distortion 60 mm (2.5 in) driver, which features a secondary bucking magnet for high efficiency, rubber half-roll surround for enhanced bass performance, 19 mm (0.75 in) copper clad aluminum wire voice coil on a vented Nomex® former for high fidelity and reliability, and a copper-capped pole piece for more consistent impedance and extended high-frequency response. The wall bracket allows each speaker to be angled up to 45° off-axis.
For full-range wide-bandwidth performance, either 2 or 4 Control 52P mid-high speakers can be driven from the Control 50S/T pendant subwoofer (or from a Control 60PS/T pendant or Control 40CS/T in-ceiling subwoofer). The crossover for this subwoofer-satellite system is included in the subwoofer, and the system can be driven either low-impedance or from a 70V/100V distributed speaker line.
Features
- The stylish, unobtrusive design fits into a wide variety of decors
- Ability to intermix with Control 42C in-ceiling and Control 62P pendant satellite speakers
- 16 ohms impedance
- Wall-mount brackets included
- Available in black or white
| Product Name | JBL Control 52 Surface-Mount Satellite Loudspeaker Black (Pair) |
|---|---|
| Weight | 1.500000 |
| Frequency Response | 180 Hz – 17 kHz |
| Frequency Range | 140 Hz – 20 kHz |
| Power Capacity | 50 Watts Continuous Program Power (2 hrs)25 Watts Continuous Pink Noise (2 hrs)30 Watts Continuous Program Power (100 hrs)15 Watts Continuous Pink Noise (100 hrs) |
| Maximum SPL | 94 dB average, 100 dB peak |
| Impedance | 16 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 85 dB |
| Enclosure | High impact polystyrene, painted zinc-plated metal grille. |
| Mounting | Surface-Mount |
| Dimensions | Cabinet: 115 x 84 x 96 mm (4.5 x 3.3 x 3.75 in)Wall bracket: 51 mm (2.0 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Product Datasheet
