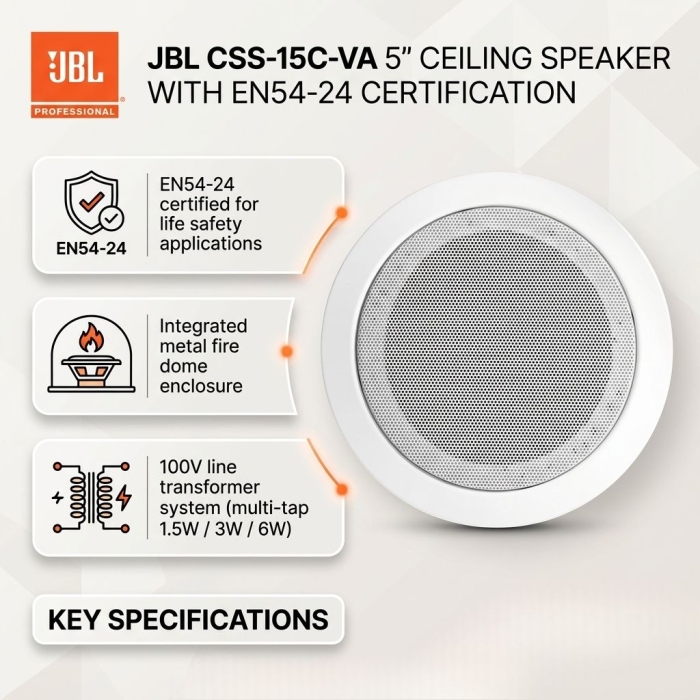

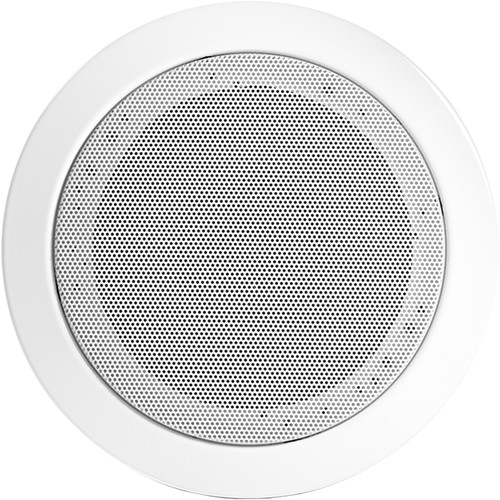

JBL CSS-15C-VA 5" Ceiling Speaker with EN54-24 Certification (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 5” full-range dual-cone driver
- EN54-24 certified for life safety applications
- Integrated metal fire dome enclosure
- 100V line transformer system (multi-tap 1.5W / 3W / 6W)
- Designed for voice alarm & emergency PA systems
PRODUCT OVERVIEW
5" Ceiling Loudspeaker for EN54-24 Applications

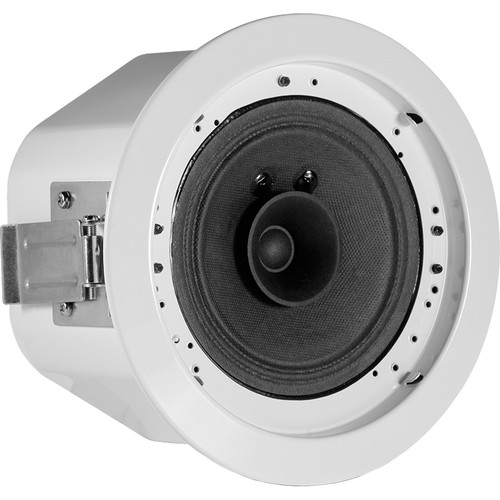

CSS-15C-VA is a full-range, EN54-24 certified ceiling speaker consisting of a 127 mm (5 inches) full-range dual-cone driver, torsion-mounted into an included easy-install, blind-mount metal fire dome. The speaker is designed to provide clear and intelligible sound for applications requiring EN54 certification and/or BS5839 compliance.
|
|
|
Features
- Component: 127 mm (5 in) full-range dual-cone loudspeaker
- EN54-24 certified and compliant with the BS5839-8 standard.
- 6W, 3W, and 1.5W multi-tap transformers for use on 100V distributed speaker lines.
- Metal fire dome with easy blind-mount installation; clip-in torsion-mount speaker.
| Product Name | JBL CSS-15C-VA 5" Ceiling Speaker with EN54-24 Certification (Each) |
|---|---|
| Weight | 1.500000 |
| Frequency Response | (-10dB), 180 Hz – 20 kHz |
| Frequency Range | 180 Hz – 20 kHz |
| Power Capacity | 6 Watts (at 6W tap) |
| Maximum SPL | 100 dB @ 1m (3.3 ft) average SPL (6W tap @ 100V) |
| Impedance | 6W @ 100V tap: 1667 Ω 3W @ 100V tap: 3333 Ω 1.5W @ 100V tap: 6667 Ω |
| Sensitivity (SPL / 1 W @ 1 m) | 92 dB (300 Hz – 15 kHz) |
| Mounting | Ceiling |
| Dimensions | 162 mm (6.4 in) fire dome diameter (outside of clamps); 183 mm (7.2 in) speaker baffle diameter; 116 mm (4.6 in) depth from bottom of ceiling surface to back of fire dome; |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | Taiwan, Province of China |
Write Your Own Review
Product Datasheet
