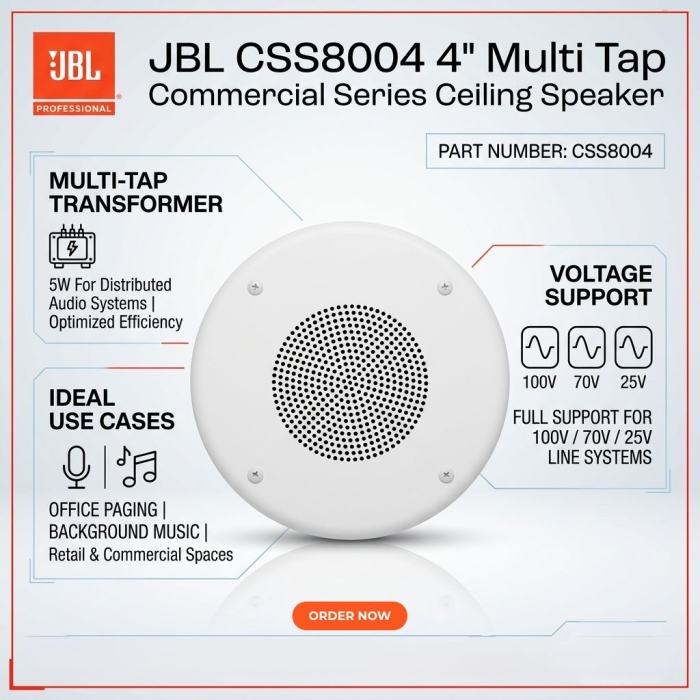

JBL CSS8004 4" Multi Tap Commercial Series Ceiling Speaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 4-inch full-range ceiling speaker
- Multi-tap transformer (5W / distributed audio systems)
- Supports 100V / 70V / 25V line systems
- Ideal for paging & background music systems
- Wide 175° sound coverage
PRODUCT OVERVIEW
100 mm (4 in) Commercial Series Ceiling Speakers
JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides a maximum sound level, even at low tap settings.
The CSS8004 from JBL is a professional-quality 4" in-ceiling speaker that provides full, clear audio in an unobtrusive design. The speaker has a wide 175° coverage pattern to reach a large area. It also has a 5W multi-tap transformer that supports 25, 70, and 100V distributed lines for connecting to virtually any pro sound system.
|
|
|
Features
- High 90 dB sensitivity
- 5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
- Very wide 175° coverage
- Fits CSS-BB4 backcan
| Product Name | JBL CSS8004 4" Multi Tap Commercial Series Ceiling Speaker (Each) |
|---|---|
| Weight | 0.900000 |
| Frequency Response | 85 Hz – 18 kHz |
| Frequency Range | 85 Hz – 18 kHz |
| Power Capacity | 25 V / 70 V / 100 V |
| Maximum SPL | 97 dB (top 25V/70V/100V tap) |
| Impedance | 8 Ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 90 dB (2k - 6k Hz) |
| Mounting | Ceiling Speaker |
| Dimensions | 9.9 x 9 x 4.5" |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | China |
Write Your Own Review
Product Datasheet
