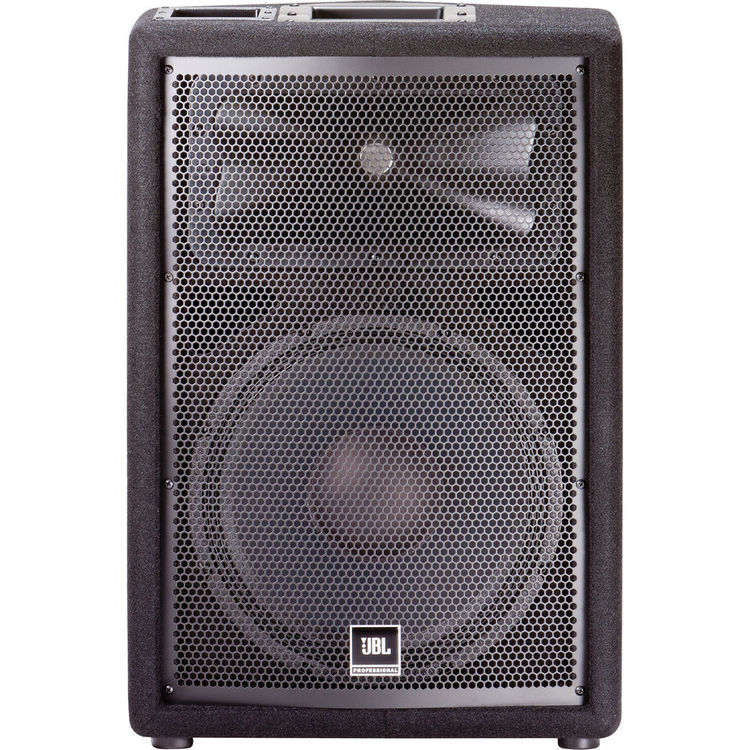

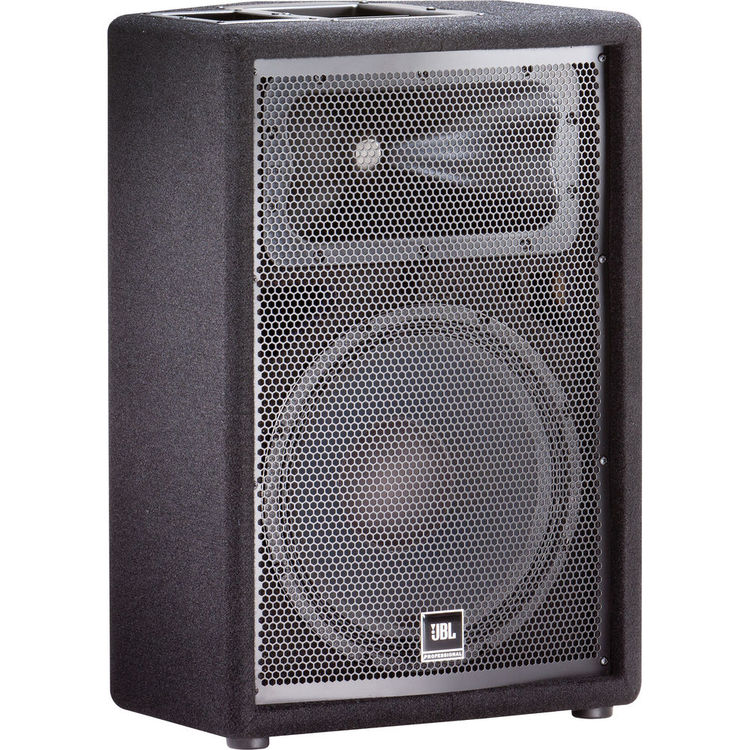

JBL JRX212 12" Two-Way Sound Stage Monitor Loudspeaker System (Single)

PRODUCT OVERVIEW

12 in. Two-Way Stage Monitor Loudspeaker System

The JRX212 from JBL is a two-way 12" loudspeaker system. It is suitable for live sound and speech reinforcement applications and can also be used for monitoring on stage. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency range of 60 Hz to 20 kHz.

Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the 43 lb speaker is easier to move around than if it had no handles at all. For connections, this loudspeaker sports 1/4" TS and Neutrik SpeakON terminations.

Features

• JBL 12 in low-frequency driver with a 64 mm (2.5 in) diameter edge-wound ribbon voice coil, which provides more cross-sectional wire area in the voice coil gap than round wire designs for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high-frequency performance as well as system reliability.
• The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition™ high-frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard™ protects the high-frequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge hexagon perforated steel grille protects components from damage.
• Dual-angle pole-mount socket allows the speaker to tilt 10° for more uniform audience coverage.
