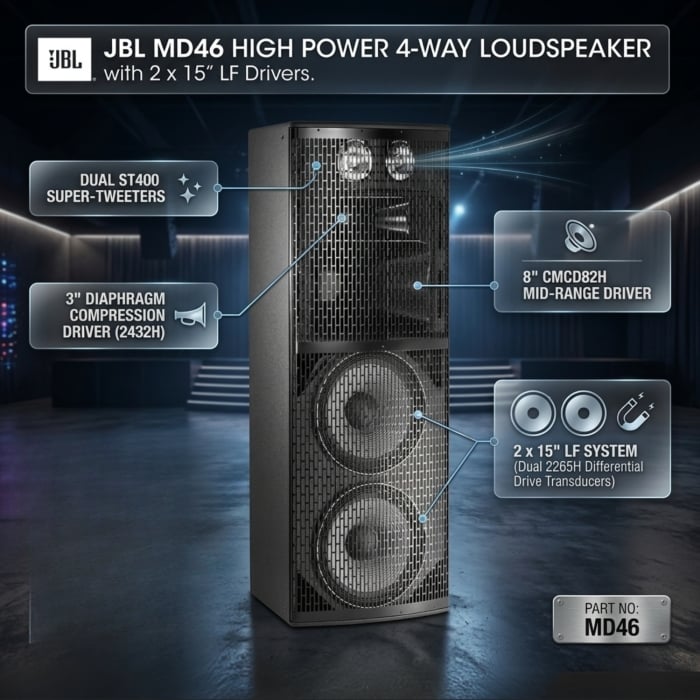

JBL MD46 High Power 4-Way Loudspeaker with 2 x 15" LF Driver
JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. MD46 is a high-power 60° x 40° dual 15" low-frequency system utilizing dual 2265H Differential Drive transducers, CMCD82H 8" mid-range driver, 2432H 3" diaphragm compression driver, and dual ST400 super tweeters. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.
PRODUCT OVERVIEW
High Power 4-Way Loudspeaker with 2 x 15" LF Driver
JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. MD46 is a high-power 60° x 40° dual 15" low-frequency system utilizing dual 2265H Differential Drive transducers, CMCD82H 8" mid-range driver, 2432H 3" diaphragm compression driver, and dual ST400 super tweeters. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.
Features
- JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. MD46 is a high-power 60° x 40° dual 15" low-frequency system utilizing dual 2265H Differential Drive transducers, CMCD82H 8" mid-range driver, 2432H 3" diaphragm compression driver, and dual ST400 super tweeters. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.
- JBL CMCD-82H 8" cone midrange compression driver
- JBL 2432H 3" diaphragm, 1.5" exit compression driver
- 60° x 40° PT™ Progressive Transition waveguide
- Dual JBL Selenium ST400 Super Tweeters
- 4-way quad-amplified system
Applications
- Sophisticated dance clubs
- Anywhere high energy dance music is required
| Product Name | JBL MD46 High Power 4-Way Loudspeaker with 2 x 15" LF Driver |
|---|---|
| Weight | 65.800000 |
| Frequency Response | 48 Hz – 19 kHz |
| Frequency Range | 42 Hz – 20 kHz |
| Power Capacity | LF: 1600 W / MF: 350 W HF: 75 W UHF: 130 W |
| Maximum SPL | LF: 130 dB-SPL cont avg (136 dB peak)MF: 133 dB-SPL cont avg (139 dB peak)HF: 132 dB-SPL cont avg (138 dB peak)UHF: 128 dB-SPL cont avg (134 dB peak) |
| Impedance | 4 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 101 dB SPL, 2.83V (2W) @ 1m (3.3 ft) |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood |
| Dimensions | 1524.0 x 559.8 x 653.3 mm(60.0 x 22 x 25.8 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
