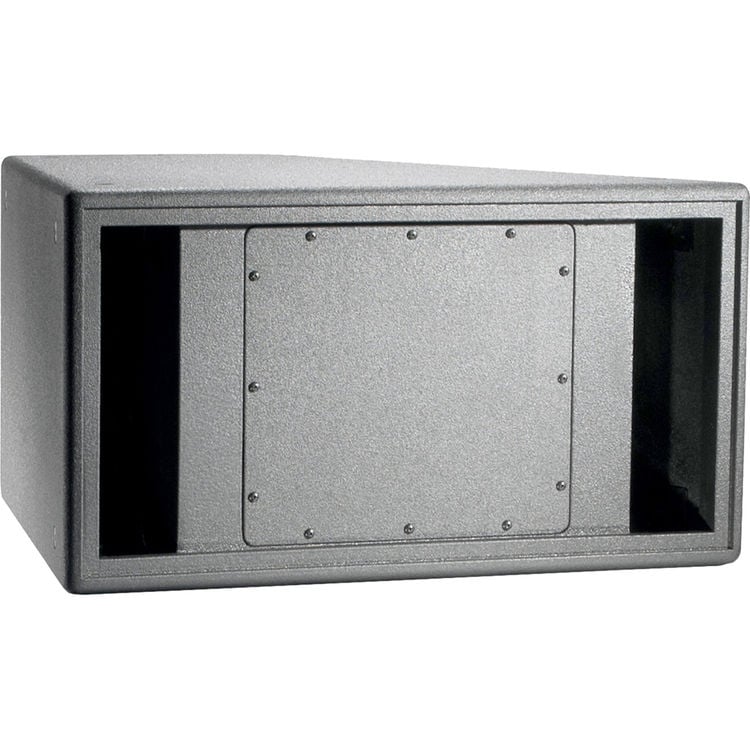

JBL PD5122 Dual 12" Slot-Loaded Low-Frequency Passive Loudspeaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- Works with PD5000 & PD700 Series
- 2 x 12" Vented Gap Cooled Woofers
- Power: 4800W Peak
- 49 to 300 Hz Frequency Response
- 134 Peak SPL
PRODUCT OVERVIEW
Full Range / Low Frequency
The white JBL Professional PD5122 is a passive, high-power, low-frequency module designed to be used with mid/high only or full-range modules, such as the PD5000, PD6000, and PD700 series loudspeaker systems. The PD5122 is principally intended to be used in conjunction with the PD5322 full-range system to construct arrays with extended low-frequency pattern control.
The enclosure is made with exterior-grade birch plywood and finished with a white DuraFlex finish. The PD5122 requires 4800W of output to power the dual 12" VGC drivers, which provide a frequency response of 49 to 300 Hz with a peak SPL of 134 dB.
Features
- Dual high power 300 mm (12 in) low-frequency drivers.
- Designed to extend LF pattern control of PD6322 systems.
- Slot-loaded configuration duplicates the LF performance of PD6322.
| Product Name | JBL PD5122 Dual 12" Slot-Loaded Low-Frequency Passive Loudspeaker (Each) |
|---|---|
| Weight | 36.400000 |
| Frequency Response | 49 Hz to 300 Hz ( ± 3 dB) |
| Frequency Range | 41 Hz to 1 kHz (-10 dB) |
| Power Capacity | Passive: 4800 W Peak (at 4 Ohms) |
| Maximum SPL | 134 dB SPL |
| Impedance | 4 ohms in parallel-drive mode |
| Sensitivity (SPL / 1 W @ 1 m) | 116 dB-SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | Horn Only: 8.2 x 11.2 x 11.3" (20.6 x 28.5 x 28.7 cm) With Mounting Bracket: 8.9 x 11.2 x 11.3" (22.4 x 28.5 x 28.7 cm) (depth excludes cable exit) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
