JBL PD5125 Passive Dual 15" Low-Frequency Loudspeaker - White (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- Works with PD5000 & PD700 Series
- 2 x 15" Vented Gap Cooled Woofers
- Power: 8000W Peak
- 42 to 2.1 kHz Frequency Response
- 142 Peak SPL
PRODUCT OVERVIEW
Full Range / Low Frequency

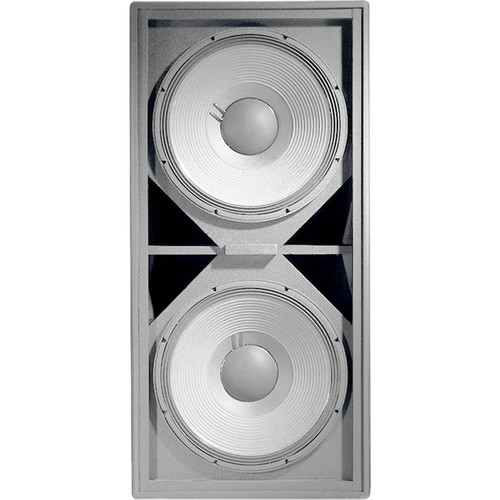

The white JBL Professional PD5125 is a passive, high-power, low-frequency subwoofer designed to be used with mid/high-only or full-range modules, such as the PD5000, PD6000, and PD700 series loudspeaker systems. The PD5125 will perform well in any application where high-output, low bass is required.
The enclosure is made with exterior-grade birch plywood and finished with a white DuraFlex finish. The PD5125 requires 8000W of output to power the dual 15" VGC drivers, which provide a frequency response of 42 to 2.1 kHz with a peak SPL of 142 dB.
Features
- Dual high power 300 mm (12 in) low-frequency drivers.
- Designed to extend LF pattern control of PD6322 systems.
- Slot-loaded configuration duplicates the LF performance of PD6322.
| Product Name | JBL PD5125 Passive Dual 15" Low-Frequency Loudspeaker - White (Each) |
|---|---|
| Weight | 53.400000 |
| Frequency Response | 42 Hz to 2.1 kHz ±3 dB |
| Frequency Range | 37 Hz to 2.5 kHz -10 dB |
| Power Capacity | Passive: 8000 W Peak (at 4 Ohms) |
| Maximum SPL | 142 dB SPL |
| Impedance | 2 x 8 Ohms (Discrete) 1 x 4 Ohms (Parallel) |
| Sensitivity (SPL / 1 W @ 1 m) | (1W @ 1m)3: 50 Hz - 125 Hz 103 dB. 125 Hz - 800 Hz 102 dB |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | 991 x 476 x 609 mm (39 x 18.75 x 27.2 in) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
