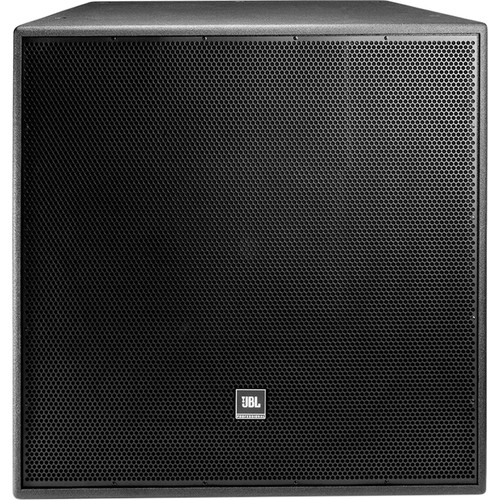

JBL PD544-WRC 15" Loudspeaker with WRC Weather Protection 40° x 40° Black (Single)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 15-inch horn-loaded low-frequency driver for high-output PA performance
- 40° × 40° Progressive Transition waveguide for tight, controlled sound coverage
- Rotatable horn design (can be mounted vertically or horizontally)
- High-efficiency 2-way system with 1.5" compression driver for highs
- Switchable passive / bi-amp crossover configuration
PRODUCT OVERVIEW
15” Horn-Loaded Full-Range Loudspeaker System
PD544 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD544 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.
|
|
|
Features
- 380 mm (15”) horn-loaded low-frequency driver
- Large PT™ Progressive Transition™ waveguides provide broad band 40° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Applications
- Sports Facilities
- Performance spaces
- Auditoriums
- Worship facilities
| Product Name | JBL PD544-WRC 15" Loudspeaker with WRC Weather Protection 40° x 40° Black (Single) |
|---|---|
| Weight | 69.000000 |
| Frequency Response | 90Hz to 17kHz |
| Frequency Range | 50Hz to 20kHz |
| Power Capacity | Passive mode: 500W 2hrs, 300W 100hrs (IEC) |
| Maximum SPL | Bi-amp: LF: 133 cont (139 peak) HF: 134 cont (140 peak) Passive: 133 cont (139 peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 106 dB (avg 300Hz-1.3kHz) |
| Enclosure | Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood. |
| Dimensions | 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
