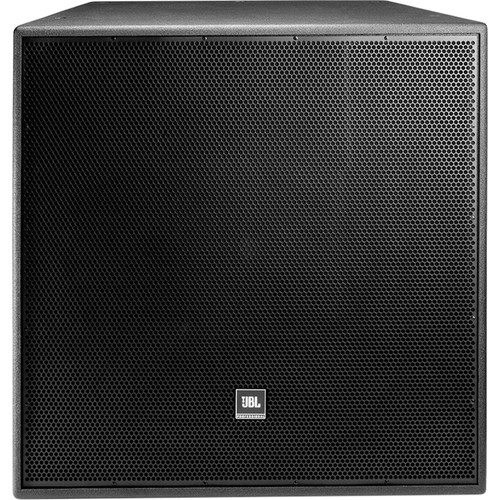

JBL PD544-WRX 15" Loudspeaker with WRX Extreme Weather Protection 40° x 40° Black (Single)
Call For The Best Price
Contact our sales team today for exclusive pricing and product availability.
Call Now: +971-4-3360300Call: +971-4-3360300 | Email: [email protected]
Quick Overview
- 15-inch horn-loaded full-range loudspeaker designed for high-output PA systems
- Extreme weather-resistant construction (WRX version) for harsh outdoor environments
- 40° × 40° Progressive Transition waveguide for tight, controlled sound coverage
- High-efficiency 2-way design with 1.5" compression driver for clear high frequencies
- Rotatable horn for flexible horizontal or vertical installation
PRODUCT OVERVIEW
15” Horn-Loaded Full-Range Loudspeaker System
PD544 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD544 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.
|
|
|
Features
- 380 mm (15”) horn-loaded low-frequency driver
- Large PT™ Progressive Transition™ waveguides provide broad band 40° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Applications
- Sports Facilities
- Performance spaces
- Auditoriums
- Worship facilities
| Product Name | JBL PD544-WRX 15" Loudspeaker with WRX Extreme Weather Protection 40° x 40° Black (Single) |
|---|---|
| Weight | 69.000000 |
| Frequency Response | 90Hz to 17kHz |
| Frequency Range | 50Hz to 20kHz |
| Power Capacity | Passive mode: 500W 2hrs, 300W 100hrs (IEC) |
| Maximum SPL | Bi-amp: LF: 133 cont (139 peak) HF: 134 cont (140 peak) Passive: 133 cont (139 peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 106 dB (avg 300Hz-1.3kHz) |
| Enclosure | Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood. |
| Dimensions | 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
