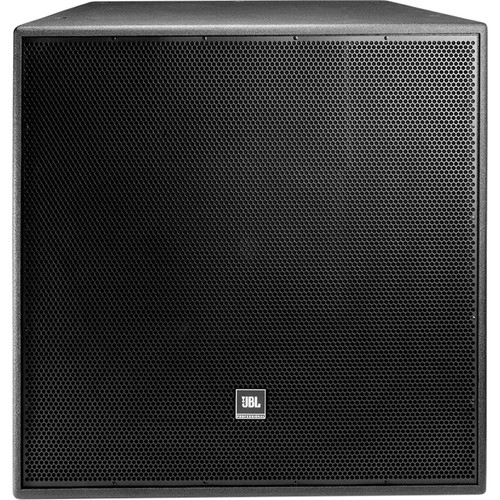

JBL PD564 15" Horn-Loaded Full-Range Loudspeaker System 60° x 40° - Black (Single)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 15-inch horn-loaded full-range professional loudspeaker for high-output PA systems
- 60° × 40° Progressive Transition waveguide for controlled sound dispersion
- High-efficiency 2-way design with 1.5" compression driver for clear high frequencies
- Rotatable horn allows flexible horizontal or vertical installation
- Switchable passive / bi-amp operation for system integration flexibility
PRODUCT OVERVIEW
15” Horn-Loaded Full-Range Loudspeaker System
PD564 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD564 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.
|
|
|
Features
- 380 mm (15”) horn-loaded low-frequency driver
- Large PT™ Progressive Transition™ waveguides provide broadband 60° x 40° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Applications
- Sports Facilities
- Performance spaces
- Auditoriums
- Worship facilities
| Product Name | JBL PD564 15" Horn-Loaded Full-Range Loudspeaker System 60° x 40° - Black (Single) |
|---|---|
| Weight | 69.000000 |
| Frequency Response | 90Hz to 17kHz |
| Frequency Range | 50Hz to 20kHz |
| Power Capacity | Passive mode: 500W 2hrs, 300W 100hrs (IEC) |
| Maximum SPL | Bi-amp: LF: 133 cont (139 peak) HF: 132 cont (138 peak) Passive: 132 cont (138 peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 106dB (avg 300Hz-1.3kHz) |
| Enclosure | Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood. |
| Dimensions | 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
