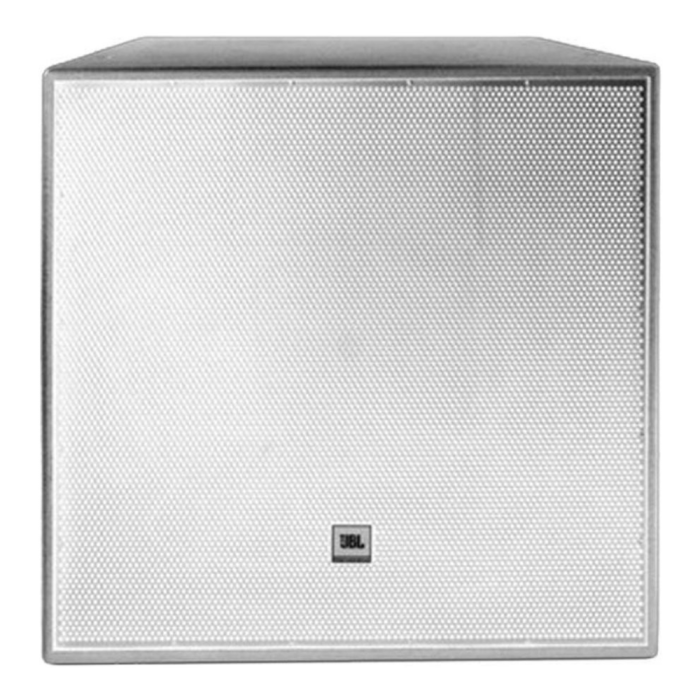

JBL PD566-WH 15" Horn-Loaded Full-Range Loudspeaker System 60° x 60° - White (Single)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Quick Overview
- 15" horn-loaded full-range professional PA loudspeaker
- 60° × 60° Progressive Transition waveguide for precise coverage
- High-efficiency 2-way design with 1.5" compression driver
- Rotatable horn for flexible horizontal/vertical installation
- Switchable passive or bi-amp operation
PRODUCT OVERVIEW
15” Horn-Loaded Full-Range Loudspeaker System
PD566 is a Precision Directivity™ loudspeaker designed for applications requiring high output capability with excellent pattern control. PD566 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.
|
|
|
Features
- 380 mm (15”) horn-loaded low-frequency driver
- Large PT™ Progressive Transition™ waveguides provide broadband 60° x 60° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Applications
- Sports Facilities
- Performance spaces
- Auditoriums
- Worship facilities
| Product Name | JBL PD566-WH 15" Horn-Loaded Full-Range Loudspeaker System 60° x 60° - White (Single) |
|---|---|
| Weight | 68.946040 |
| Frequency Response | 90Hz to 17kHz |
| Frequency Range | 50Hz to 20kHz |
| Maximum SPL | Bi-amp: LF: 133 cont (139 peak) HF: 133 cont (139 peak) Passive: 131 cont (137 peak) |
| Impedance | 8 ohms8 ohms |
| Enclosure | Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood. |
| Dimensions | 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
