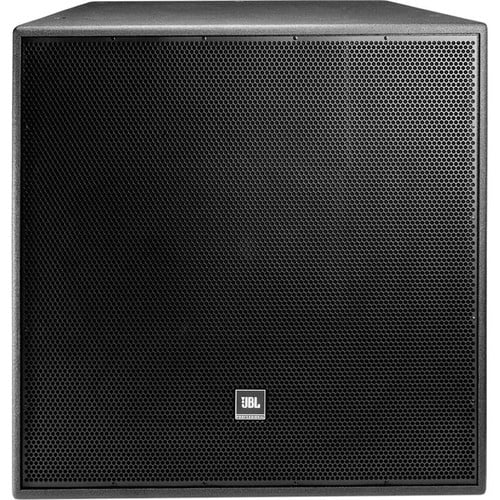

JBL PD595 15" Horn-Loaded Full-Range Loudspeaker System 90° x 50° Black (Single)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Key Features of JBL PD595 15"
- 15" High-Power Horn-Loaded Full-Range Speaker
- 90° × 50° Constant Coverage Horn
- High SPL with Exceptional Speech Clarity
- Weather-Resistant Enclosure for Indoor & Outdoor Use
- Durable Multi-Ply Birch Plywood Cabinet
PRODUCT OVERVIEW

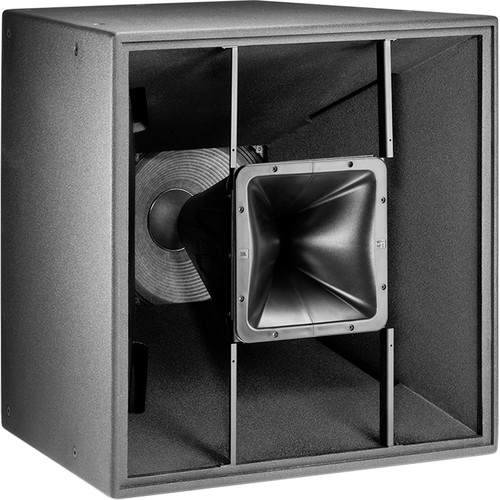

15” Horn-Loaded Full-Range Loudspeaker System
PD595 is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD595 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth fullrange systems.
|
|
|
Features
- 380 mm (15”) horn-loaded low-frequency driver
- Large PT™ Progressive Transition™ waveguides provide broadband 60° x 60° pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable waveguide allows for either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes
Applications
- Sports Facilities
- Performance spaces
- Auditoriums
- Worship facilities
| Product Name | JBL PD595 15" Horn-Loaded Full-Range Loudspeaker System 90° x 50° Black (Single) |
|---|---|
| Weight | 69.000000 |
| Frequency Response | 90Hz to 16kHz |
| Frequency Range | 50Hz to 20kHz |
| Maximum SPL | Bi-amp: LF: 133 cont (139 peak) HF: 131 cont (137 peak) Passive: 131 cont (137 peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 104 dB SPL |
| Enclosure | Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood. |
| Dimensions | 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
