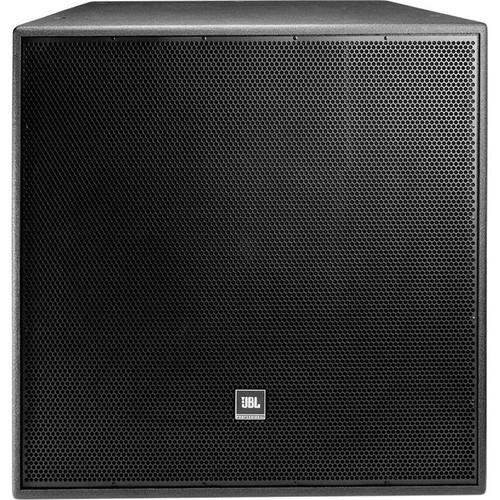

JBL PD595-WRX 15-Inch Extreme Weather-Resistant Horn-Loaded Full-Range Loudspeaker System 90° x 50° Black (Single)
JBL PD595-WRX is a high-output 15-inch horn-loaded full-range loudspeaker designed for extreme outdoor environments. It features 90° x 50° coverage, 8-ohm impedance, 500W passive system power handling, and weather-resistant WRX protection for direct exposure, high humidity, salt air, and demanding outdoor installations.
JBL PD595-WRX 15-Inch Extreme Weather-Resistant Loudspeaker
Professional 15-inch horn-loaded full-range loudspeaker system with 90° x 50° coverage, high output performance and extreme weather-resistant construction for demanding outdoor installations.
 |
 |
Product Overview
The JBL PD595-WRX is a professional 15-inch horn-loaded full-range loudspeaker system engineered for high-output sound reinforcement in demanding indoor and outdoor environments. Its combination of high acoustic output, controlled directivity and rugged construction makes it suitable for professional installations where reliable performance is essential.

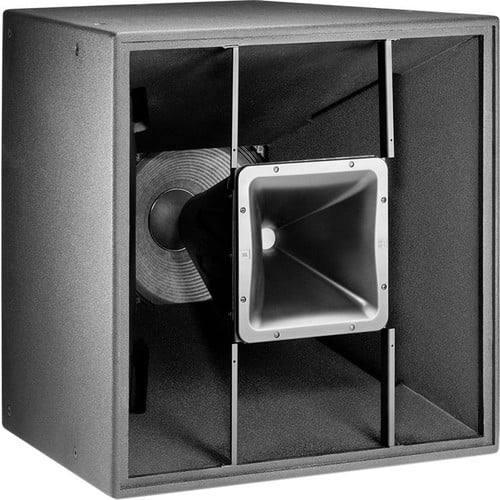

The loudspeaker features a 15-inch low-frequency driver and a high-frequency compression driver integrated with JBL's Progressive Transition™ waveguide technology. The system provides a controlled 90° x 50° coverage pattern, helping deliver consistent sound distribution across the listening area.
The WRX extreme weather-resistant configuration is designed for challenging environmental conditions, including high humidity, salt-air environments, tropical climates and installations exposed to changing weather conditions.
Key Features
15-Inch Full-Range System
Professional 15-inch horn-loaded loudspeaker design for powerful full-range sound reproduction.
90° x 50° Coverage
Controlled horizontal and vertical directivity provides consistent coverage throughout the listening area.
Extreme Weather Resistant
WRX construction is engineered for demanding outdoor and high-humidity environments.
High Output Performance
Designed to deliver high SPL performance for professional sound reinforcement applications.
Bi-Amp / Passive Operation
Supports flexible system configuration for professional sound reinforcement installations.
Rugged Professional Design
Durable enclosure and weather-resistant construction for long-term professional installation use.
Professional Audio Performance
The JBL PD595-WRX is designed for applications requiring high acoustic output and controlled sound dispersion. Its horn-loaded architecture helps maximize acoustic efficiency while the compression driver provides detailed high-frequency reproduction.
With a frequency range extending from approximately 50 Hz to 20 kHz, the PD595-WRX provides broad full-range reproduction for professional sound reinforcement. Its high sensitivity and peak SPL capability make it suitable for large venues and demanding sound systems.
Built for Extreme Outdoor Environments
The WRX version is specifically designed for installations where conventional loudspeakers may be exposed to demanding environmental conditions. Its weather-resistant construction helps protect the system against humidity, salt air and other challenging outdoor conditions.
Technical Specifications
| Brand | JBL Professional |
|---|---|
| Model | PD595-WRX |
| Speaker Type | Horn-Loaded Full-Range Loudspeaker |
| Low-Frequency Driver | 15-Inch |
| High-Frequency Driver | 1.5-Inch Exit Compression Driver |
| Coverage Pattern | 90° x 50° |
| Frequency Range | 50 Hz – 20 kHz |
| System Sensitivity | 104 dB |
| Peak SPL | Up to 137 dB |
| Passive Power Rating | 500 W / 2 Hours; 300 W / 100 Hours |
| Operating Modes | Passive / Bi-Amp |
| Nominal Impedance | 8 Ohms |
| Enclosure | Professional Birch Plywood Construction |
| Finish | Black DuraFlex™ Finish |
| Weather Protection | WRX Extreme Weather-Resistant Configuration |
| Application | Professional Indoor and Outdoor Sound Reinforcement |
Recommended Applications
| Product Name | JBL PD595-WRX 15-Inch Extreme Weather-Resistant Horn-Loaded Full-Range Loudspeaker System 90° x 50° Black (Single) |
|---|---|
| Weight | 69.000000 |
| Frequency Response | 50 - 20000 Hz |
| Frequency Range | 50Hz to 20kHz |
| Maximum SPL | Bi-amp: LF: 133 cont (139 peak) HF: 131 cont (137 peak) Passive: 131 cont (137 peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 104 dB SPL |
| Enclosure | Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood. |
| Dimensions | 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
