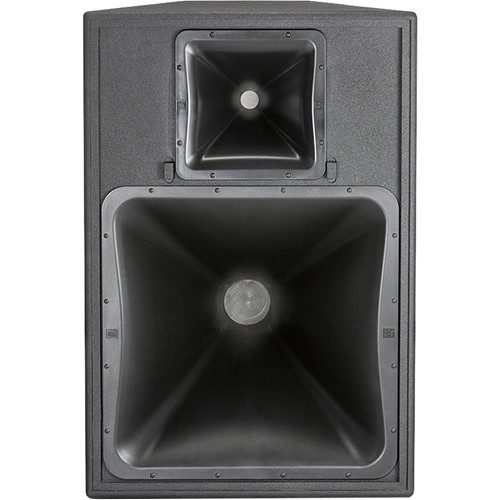

JBL PD6200/43 Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker - White (Single)
QUICK OVERVIEW
-
8-Inch High-Output Mid/High Loudspeaker
-
40° x 30° Precision Directivity Coverage
-
Bi-Amp / Passive Switchable Operation
-
CMCD-82H Dual-Coil Midrange Compression Driver
-
1.5-Inch Exit High-Frequency Compression Driver
-
Up to 143 dB Peak SPL in Bi-Amp Mode
-
111 dB Passive Mode Sensitivity
-
Rotatable Progressive Transition™ Waveguid
JBL PD6200/43 Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker - White
Professional high-output two-way mid/high-frequency loudspeaker featuring an 8-inch CMCD™ midrange compression driver, 1.5-inch exit HF compression driver and 40° x 30° Precision Directivity™ coverage for demanding professional sound reinforcement applications.
Product Overview
The JBL PD6200/43-WH is a high-output two-way mid/high-frequency loudspeaker designed for professional sound reinforcement applications requiring excellent acoustic output, precise directivity and controlled coverage.
The system combines a high-power CMCD-82H 8-inch dual-coil cone midrange compression driver with a JBL 2432H 1.5-inch exit high-frequency compression driver. This combination provides high sensitivity, extended bandwidth, low distortion and clear high-frequency projection.
Its large-format Progressive Transition™ waveguides provide a controlled 40° x 30° coverage pattern. The waveguides are rotatable, allowing the cabinet to be installed in either horizontal or vertical orientation.
Key Features
8-Inch CMCD™ Midrange Driver
High-power 200 mm (8-inch) dual-coil CMCD™ cone midrange compression driver delivers high sensitivity, extended bandwidth and low distortion.
1.5-Inch HF Compression Driver
JBL 2432H high-frequency compression driver provides clear and intelligible high-frequency projection with extended response.
40° x 30° Precision Directivity
Large Progressive Transition™ waveguides provide consistent 40° x 30° pattern control with smooth frequency response.
Bi-Amp / Passive Operation
Switchable crossover modes allow the loudspeaker to operate in either passive or bi-amplified system configurations.
Rotatable Waveguides
Mid and high-frequency waveguides can be rotated to support horizontal or vertical cabinet orientation.
White Professional Finish
White (-WH) finish provides a clean professional appearance for installations where cabinet aesthetics are important.
Professional Audio Performance
The PD6200/43 is engineered as a Precision Directivity™ mid/high loudspeaker for professional venues requiring high acoustic output and excellent pattern control. Its horn-loaded architecture and high-sensitivity transducers help deliver powerful and intelligible sound reproduction.
In passive mode, the system provides 111 dB sensitivity and up to 142 dB peak SPL. In bi-amp mode, the mid-frequency section can reach up to 143 dB peak SPL, while the high-frequency section can reach up to 141 dB peak SPL.
Flexible Passive & Bi-Amp System Configuration
The JBL PD6200/43 can be operated in either full passive or bi-amplified mode. Its steep-slope passive crossover and rotatable Progressive Transition™ waveguides provide flexibility for professional system design, installation and array configuration.
Technical Specifications
| Brand | JBL Professional |
|---|---|
| Model | PD6200/43-WH |
| Speaker Type | Two-Way Mid/High-Frequency Loudspeaker |
| Configuration | Passive / Bi-Amp Switchable |
| Mid-Frequency Driver | CMCD-82H 8-Inch Dual-Coil Cone Midrange Compression Driver |
| High-Frequency Driver | 2432H 1.5-Inch Exit Compression Driver |
| HF Voice Coil | 3-Inch (75 mm) |
| Coverage Pattern | 40° x 30° Rotatable |
| Frequency Range (-10 dB) | 200 Hz – 18 kHz |
| Frequency Response (±3 dB) | 240 Hz – 16 kHz |
| Passive System Sensitivity | 111 dB SPL (1W @ 1m) |
| Maximum SPL - Passive | 136 dB SPL Continuous / 142 dB Peak |
| Maximum SPL - Bi-Amp MF | 137 dB SPL Continuous / 143 dB Peak |
| Maximum SPL - Bi-Amp HF | 135 dB SPL Continuous / 141 dB Peak |
| Passive Power Rating | 300 W / 1200 W Peak |
| MF Power Rating | 350 W / 1400 W Peak |
| HF Power Rating | 75 W / 300 W Peak |
| Nominal Impedance | 8 Ohms |
| Passive Crossover | 1.7 kHz, 6th Order Linkwitz-Riley |
| Enclosure | Trapezoidal 11-Ply Finnish Birch Plywood |
| Enclosure Thickness | 16 mm (0.625 Inch) |
| Suspension | 20 x M10 Threaded Suspension Points |
| Input Connectors | Neutrik Speakon NL4 and Barrier Strip |
| Environmental Rating | Mil-Std 810; IP-X3 |
| Weather-Resistant Options | WRC / WRX Available |
| Finish | White Finish (-WH) |
| Dimensions (H x W x D) | 991 x 673 x 897 mm |
| Dimensions (H x W x D) | 39.0 x 26.5 x 35.3 Inches |
| Net Weight | 69 kg (152 lb) |
| Quantity | Single Loudspeaker |
Recommended Applications
Why Choose JBL PD6200/43?
The JBL PD6200/43-WH combines high-output mid/high-frequency performance, precise 40° x 30° directivity and flexible passive/bi-amp operation in a professional installation-ready enclosure. Its powerful CMCD™ midrange driver, 2432H high-frequency driver and rotatable waveguides make it a strong solution for demanding sound reinforcement applications where output, intelligibility and pattern control are essential.
| Product Name | JBL PD6200/43 Passive/Biamp Two-Way Mid-/High-Frequency Loudspeaker - White (Single) |
|---|---|
| Weight | 58.800000 |
| Frequency Response | 240 Hz to 16 kHz( ± 3 dB) |
| Frequency Range | 200 Hz to 18 kHz (-10 dB) |
| Power Capacity | Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1400 W Peak 300 W Peak |
| Maximum SPL | MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 111 dB SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
