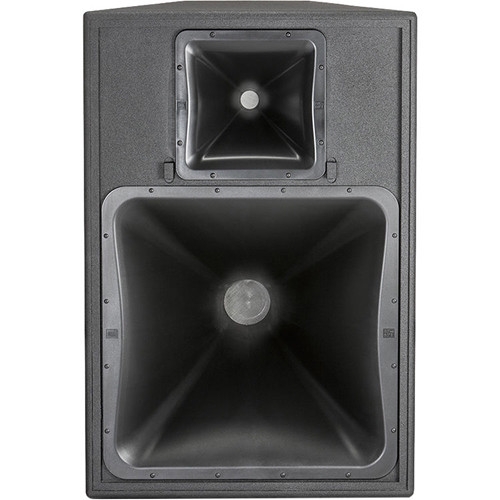

JBL PD6200/64 Two Way High Frequency Loudspeaker (Single)
QUICK OVERVIEW
-
Two-Way High-Frequency Loudspeaker System
-
High-Output Professional Sound Reinforcement
-
60° x 40° Precision Directivity™ Coverage
-
8-Inch CMCD™ Midrange Compression Driver
-
1.5-Inch Exit High-Frequency Compression Driver
-
Passive / Bi-Amp Switchable Operation
-
Rotatable Progressive Transition™ Waveguide

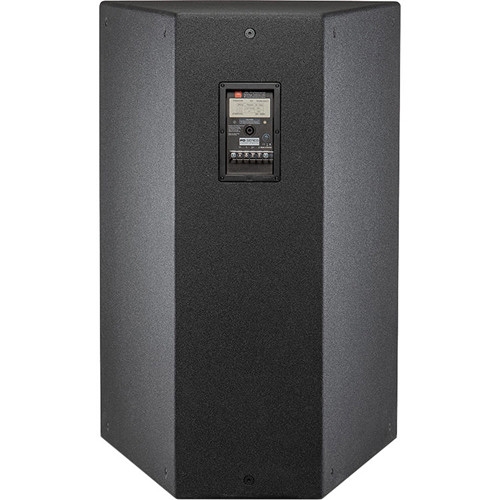

JBL PD6200/64 Two-Way High-Frequency Loudspeaker
Professional two-way high-frequency loudspeaker system engineered for high-output sound reinforcement, precise directivity and consistent coverage in demanding professional audio installations.
Product Overview
The JBL PD6200/64 is a professional two-way high-frequency loudspeaker designed for demanding sound reinforcement applications requiring high acoustic output, controlled directivity and excellent intelligibility.
The system combines JBL professional compression-driver technology with a large-format Progressive Transition™ waveguide to provide controlled and consistent sound coverage. Its precision-directivity architecture makes it suitable for professional venues where predictable acoustic performance is essential.
The PD6200/64 is designed to integrate with larger professional sound reinforcement systems and can be used in applications requiring powerful mid/high-frequency reproduction.
Key Features
Two-Way High-Frequency Design
Professional two-way architecture provides powerful and detailed mid/high-frequency reproduction for sound reinforcement.
60° x 40° Coverage
Precision Directivity™ waveguide provides controlled horizontal and vertical sound dispersion for predictable coverage.
High-Output Performance
Engineered for professional environments requiring high acoustic output and strong projection over large listening areas.
Progressive Transition™ Waveguide
Large-format waveguide technology provides smooth pattern control and consistent frequency response across the coverage area.
Passive / Bi-Amp Operation
Flexible crossover configuration allows integration into passive or bi-amplified professional sound systems.
Professional Installation
Robust professional enclosure and suspension provisions support demanding fixed-installation and sound reinforcement applications.
Professional Audio Performance
The JBL PD6200/64 is designed for professional sound reinforcement systems where controlled directivity and high acoustic output are critical. Its horn-loaded architecture helps improve efficiency while maintaining focused and consistent sound distribution.
The controlled coverage pattern helps reduce unwanted sound spill and provides more predictable acoustic performance across the intended listening area. This makes the system suitable for large professional venues and demanding installed sound systems.
Precision Directivity for Professional Sound Reinforcement
The PD6200/64 combines JBL compression-driver technology with Precision Directivity™ waveguide engineering to deliver focused high-frequency projection and consistent coverage. Its professional architecture makes it suitable for integration with larger JBL sound reinforcement systems.
Technical Specifications
| Brand | JBL Professional |
|---|---|
| Model | PD6200/64 |
| Speaker Type | Two-Way High-Frequency Loudspeaker |
| System Configuration | Two-Way |
| Coverage Pattern | 60° x 40° |
| Waveguide | Progressive Transition™ Precision Directivity™ |
| Operation | Passive / Bi-Amp Compatible |
| Frequency Response | Professional Full-Range Mid/High Frequency Reproduction |
| Application | Professional Sound Reinforcement |
| Enclosure | Professional Birch Plywood Construction |
| Suspension | Multiple Threaded Suspension Points |
| Finish | Professional JBL Finish |
| Quantity | Single Loudspeaker |
Recommended Applications
| Product Name | JBL PD6200/64 Two Way High Frequency Loudspeaker (Single) |
|---|---|
| Weight | 58.800000 |
| Frequency Response | 240 Hz to 16 kHz( ± 3 dB) |
| Frequency Range | 200 Hz to 18 kHz (-10 dB) |
| Power Capacity | Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1400 W Peak 300 W Peak |
| Maximum SPL | MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 110 dB SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
