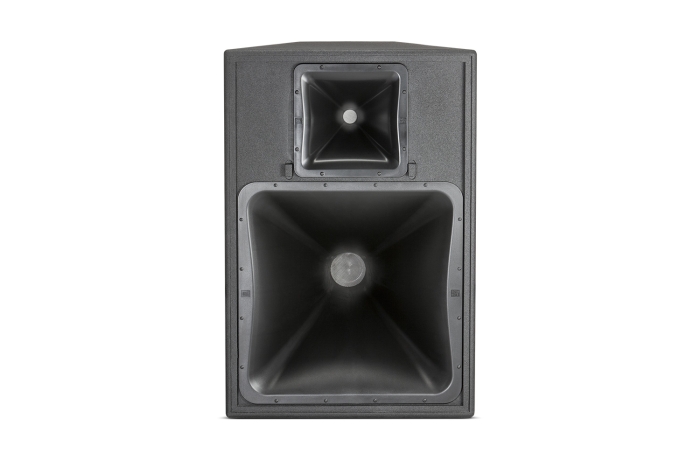

JBL PD6200/64-WRC Precision Directivity Mid-High Frequency Loudspeakers (Each)
SKU
PD6200/64-WRC
$4,999
$4,761
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
The PD6200 Series Precision Directivity mid-high frequency loudspeakers are designed for applications requiring high output capability with excellent pattern control.
PRODUCT OVERVIEW
Precision Directivity Mid-High Frequency Loudspeakers
The PD6200 Series Precision Directivity mid-high frequency loudspeakers are designed for applications requiring high output capability with excellent pattern control.
Features
- High power 200 mm (8 in) dual-coil CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
- Large format neodymium HF driver provides clear, intelligible high frequency projection.
- Large PT™ Progressive Transition™ waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response.
- Rotatable waveguides allow either horizontal or vertical cabinet orientation.
| Product Name | JBL PD6200/64-WRC Precision Directivity Mid-High Frequency Loudspeakers (Each) |
|---|---|
| Weight | 58.800000 |
| Frequency Response | 240 Hz to 16 kHz |
| Frequency Range | 200 Hz to 18 kHz |
| Power Capacity | Passive Mode: 300 W (1200 W peak), 100 hrs. (IEC rated) |
| Maximum SPL | "Bi-amp mode: MF: 135 dB-SPL cont avg (141 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 135 dB-SPL cont avg (141 dB peak)" |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | Passive Mode: 110 dB SPL |
| Enclosure | Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood |
| Mounting | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories). |
| Dimensions | 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
