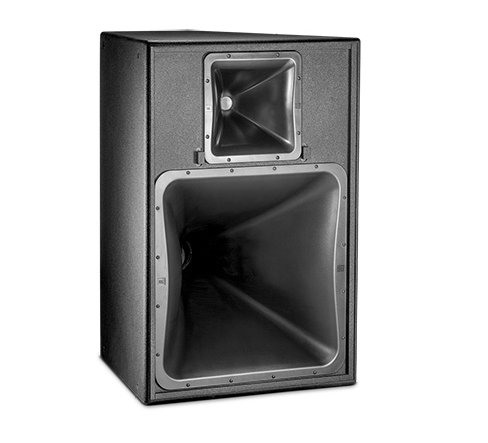

JBL PD6212/43-WRC Weather Resistant Passive Two-Way Full-Frequency Loudspeaker (Each)
SKU
PD6212/43-WRC
$7,499
$7,142
Limited Stock - Running Out Quickly
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
The PD6212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control.
PRODUCT OVERVIEW
Precision Directivity Full Range Two-Way Loudspeakers
The PD6212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full range systems.
Features
- 300 mm (12 in) horn-loaded LF and largeformat HF driver – high sensitivity design with high continuous
SPL capability. - Large PT™ Progressive Transition™ waveguides provide broad band pattern control, low distortion at high SPL levels and smooth frequency response.
- Rotatable low and high frequency waveguide allow either horizontal or vertical cabinet orientation.
- Sophisticated, steep-slope passive crossover network with switchable bi-amp/passive crossover modes.
| Product Name | JBL PD6212/43-WRC Weather Resistant Passive Two-Way Full-Frequency Loudspeaker (Each) |
|---|---|
| Weight | 79.500000 |
| Frequency Response | 90 Hz to 16 kHz |
| Frequency Range | 80 Hz to 18 kHz |
| Power Capacity | Passive Mode: 300 W (1200 W peak), 100 hrs |
| Maximum SPL | LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | Passive Mode: 109 dB-SPL |
| Enclosure | Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior |
| Mounting | 20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware |
| Dimensions | 991 x 673 x 897 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
