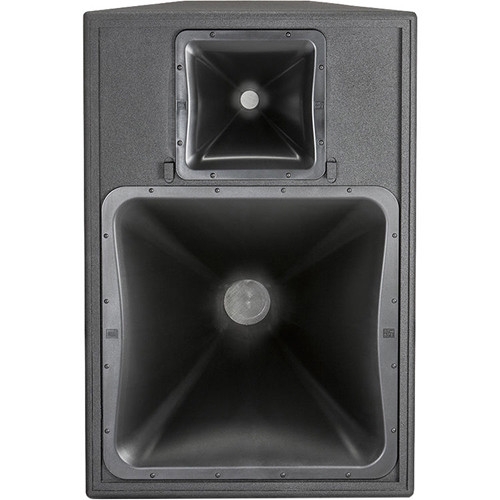

JBL PD6212/66 Two Way Full Range Loudspeaker (Single)
QUCIK OVERVIEW
-
Two-Way Full-Range Professional Loudspeaker
-
12-Inch High-Output Low-Frequency Driver
-
6-Inch CMCD™ Midrange Compression Driver
-
1.5-Inch Exit High-Frequency Compression Driver
-
60° x 60° Controlled Directivity Coverage
-
Passive / Bi-Amp Switchable Operation
JBL PD6212/66 Two-Way Full-Range Loudspeaker
Professional two-way full-range loudspeaker system engineered for high-output sound reinforcement, controlled directivity and clear, powerful audio reproduction in demanding professional applications.
Product Overview
The JBL PD6212/66 is a professional two-way full-range loudspeaker designed for applications requiring high acoustic output, excellent intelligibility and precise sound coverage.
The system combines a high-power 12-inch low-frequency driver with JBL professional high-frequency compression-driver technology. Its horn-loaded architecture provides high acoustic efficiency and strong projection for professional sound reinforcement environments.
The 60° x 60° coverage pattern provides controlled sound distribution across the listening area, making the PD6212/66 suitable for venues where consistent coverage and high-output performance are essential.
Key Features
12-Inch Low-Frequency Driver
High-output 12-inch low-frequency driver provides powerful mid-bass reproduction and efficient sound projection.
Two-Way Full-Range Design
Professional two-way architecture delivers balanced full-range sound reproduction for music and speech applications.
60° x 60° Coverage
Controlled horizontal and vertical dispersion provides consistent coverage across the intended listening area.
High-Output Performance
Designed for demanding professional venues requiring high SPL capability and powerful sound reinforcement.
Precision Directivity™
JBL waveguide technology provides controlled dispersion and helps maintain consistent frequency response across coverage.
Passive / Bi-Amp Operation
Flexible system configuration allows integration into passive or bi-amplified professional sound reinforcement systems.
Professional Audio Performance
The JBL PD6212/66 is engineered for professional sound reinforcement applications where high output, clarity and controlled directivity are required. Its high-efficiency driver architecture delivers powerful and intelligible audio reproduction.
The controlled 60° x 60° dispersion helps provide predictable coverage while minimizing unnecessary sound spill outside the intended listening area. This makes the loudspeaker suitable for large venues and professional installed sound systems.
Powerful Full-Range Sound Reinforcement
The PD6212/66 combines a high-output 12-inch low-frequency driver with professional JBL high-frequency technology in a compact two-way loudspeaker system. Its controlled directivity, high acoustic output and professional construction make it well suited for demanding sound reinforcement applications.
Technical Specifications
| Brand | JBL Professional |
|---|---|
| Model | PD6212/66 |
| Speaker Type | Two-Way Full-Range Loudspeaker |
| Low-Frequency Driver | 12-Inch High-Output Driver |
| High-Frequency Driver | Professional Compression Driver |
| Coverage Pattern | 60° x 60° |
| Waveguide | Progressive Transition™ / Precision Directivity™ |
| System Configuration | Two-Way |
| Operating Modes | Passive / Bi-Amp Compatible |
| Frequency Response | Professional Full-Range Reproduction |
| Application | Professional Sound Reinforcement |
| Enclosure | Professional Birch Plywood Construction |
| Suspension | Multiple Threaded Suspension Points |
| Finish | Professional JBL Finish |
| Quantity | Single Loudspeaker |
Recommended Applications
Why Choose JBL PD6212/66?
The JBL PD6212/66 provides a powerful two-way full-range solution for professional sound reinforcement. Its 12-inch low-frequency driver, controlled 60° x 60° coverage, high-output performance and professional JBL engineering make it a reliable choice for demanding music, speech and installed audio applications.
| Product Name | JBL PD6212/66 Two Way Full Range Loudspeaker (Single) |
|---|---|
| Weight | 69.000000 |
| Frequency Response | 90 Hz to 16 kHz ( ± 3 dB) |
| Frequency Range | 80 Hz to 18 kHz (-10 dB) |
| Power Capacity | Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1400 W Peak 300 W Peak |
| Maximum SPL | LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 107 dB-SPL |
| Enclosure | Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | 991 x 673 x 897 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
