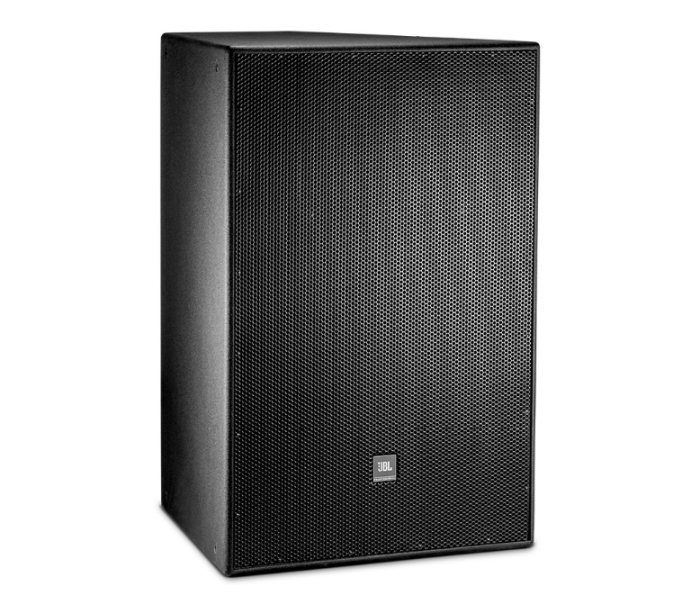

JBL PD6322/64-WRC Precision Directivity Full Range Three-Way Loudspeaker (Each)

SKU

PD6322/64-WRC

Be the first to review this product

$6,838 $6,512

Limited Stock - Running Out Quickly

Notify me when the price drops

Pay as low as per month in 4 equal installments interest free

We also accept

The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

PRODUCT OVERVIEW

Precision Directivity Full Range Three-Way Loudspeakers

The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.

Features

Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
Large format neodymium HF driver provides clear, intelligible high frequency projection.
Large PT™ Progressive Transition™ waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes.

More Information
Product Name	JBL PD6322/64-WRC Precision Directivity Full Range Three-Way Loudspeaker (Each)
Weight	77.000000
Frequency Response	49 Hz to 15 kHz
Frequency Range	41 Hz to 17 kHz
Power Capacity	LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
Maximum SPL	Tri-amp mode: LF: 128 dB-SPL cont avg (134 dB peak) MF: 135 dB-SPL cont avg (141 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 135 dB-SPL cont avg (141 dB peak)
Impedance	4 ohms (2 x 8 ohms, internally wired in parallel)
Sensitivity (SPL / 1 W @ 1 m)	Passive Mode: 110 dB-SPL (mid/high section only)
Enclosure	Trapezoidal with 12.5 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood.
Mounting	20 points (5 top, 5 bottom, 4 each side, 2 rear), M10 threaded hardware (eyebolts NOT included, see optional accessories).
Dimensions	991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
Manufacturer	JBL
Color	White
Country of Origin	United States
