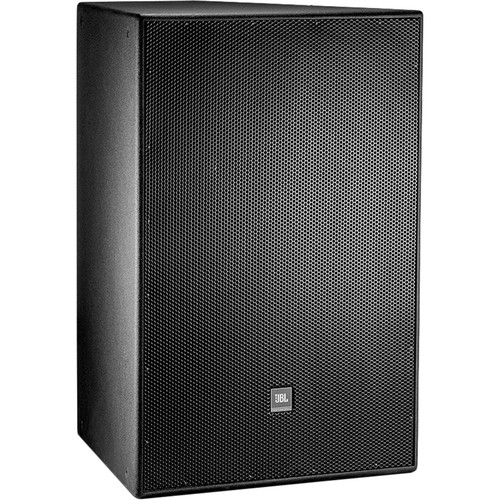

JBL PD6322/95 Passive/Tri-Amp Three-Way Full-Range Loudspeaker - Black (Single)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where a low-frequency extension to 40 Hz is required.
PRODUCT OVERVIEW
Precision Directivity Full Range Three-Way Loudspeakers
The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where a low-frequency extension to 40 Hz is required.
Features
- Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low-frequency extension to 40 Hz.
- High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth, and improved phase coherence.
- Large format neodymium HF driver provides clear, intelligible high-frequency projection.
- Large PT Progressive Transition waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
- Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
- Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes.
| Product Name | JBL PD6322/95 Passive/Tri-Amp Three-Way Full-Range Loudspeaker - Black (Single) |
|---|---|
| Weight | 77.000000 |
| Frequency Response | 49 Hz to 16 kHz ±3 dB |
| Frequency Range | 41 Hz to 18 kHz -10 dB |
| Power Capacity | Passive: 4800 W Peak (at 4 Ohms) 1200 W Peak (at 4 Ohms) Tri-Amp: 6400 W Peak 1400 W Peak 300 W Peak |
| Maximum SPL | LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak) |
| Impedance | 8 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | 109 dB-SPL |
| Enclosure | Horn / Folded Horn Loudspeaker |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | 39 x 26.5 x 27.8" / 990.6 x 673.1 x 706.1 mm |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
