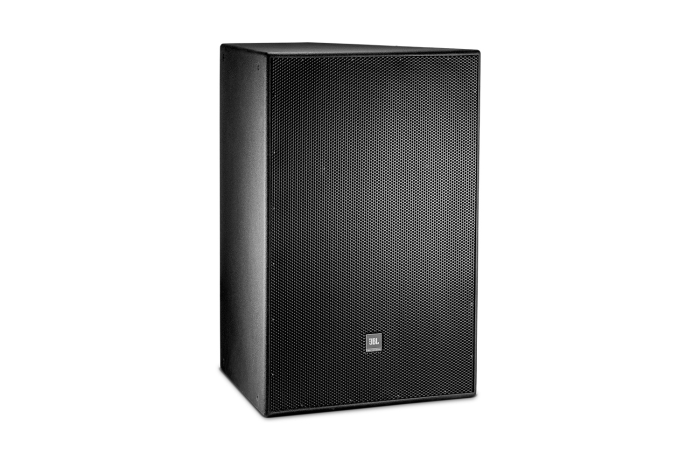

JBL PD6322 95 Precision Directivity Full Range Loudspeakers
This Model Has Been Discontinued! Please call at +971-4-3360300, & Email Us for a Replacement Model.
The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control.
PRODUCT OVERVIEW
Precision Directivity Full Range Three-Way Loudspeakers
The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control.
They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.
Features
- Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
- High power CMCD™ Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence.
- Large format neodymium HF driver provides clear, intelligible high frequency projection.
- Large PT™ Progressive Transition™ waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response.
- Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation.
- Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes.
| Product Name | JBL PD6322 95 Precision Directivity Full Range Loudspeakers |
|---|---|
| Weight | 87.089735 |
| Frequency Response | 49 Hz to 15 kHz ( ± 3 dB) |
| Frequency Range | 41 Hz to 17 kHz (-10 dB) |
| Maximum SPL | LF: 128 dB SPL (134 dB peak)MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak) |
| Enclosure | Trapezoidal with 12.5 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood. |
| Dimensions | 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
