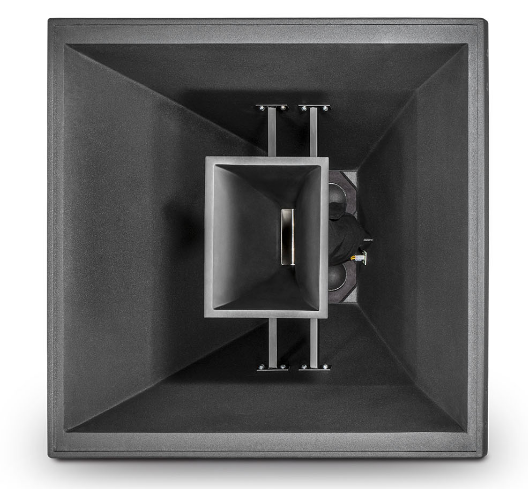

JBL PD743 Very High Output Mid-High Loudspeaker System (Single)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
The PD743i Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft).
PRODUCT OVERVIEW
Very High Output Mid-High Loudspeaker System
The PD743i Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft). The PD764i-215 may be used in clusters with other PD family modules or singly as part of a distributed system.
Features
- 40° by 30° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.
- IFS™ Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
- Dual 2432H compression drivers with 3” diaphragms
- Dual CMCD-82H 8” horn-loaded cone mid-range drivers provide 6 dB greater output than traditional designs.
- Pattern control maintained below 400 Hz.
- Co-axial mid/high-frequency module layout improves mid-frequency array ability and minimizes size.
- The integrated rigging system simplifies array design and construction.
| Product Name | JBL PD743 Very High Output Mid-High Loudspeaker System (Single) |
|---|---|
| Weight | 111.400000 |
| Frequency Response | 230 Hz - 18.5 kHz |
| Frequency Range | 200 Hz to 19.5 kHz |
| Power Capacity | MHF - 400 W (1600 W Peak) |
| Maximum SPL | MHF - 142 dB Peak |
| Impedance | MF: 4 ohms HF: 16 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | MF: 111 dB, 1 W @ 1 m (3.3 ft)HF: 118 dB, 1 W @ 1 m (3.3 ft) |
| Enclosure | Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood |
| Mounting | 20 x M10 (Bottom, Each Side, Rear, Top) |
| Dimensions | 991 mm x 991 mm x 1145.8 mm (39.0 x 39.0 x 45.1 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
