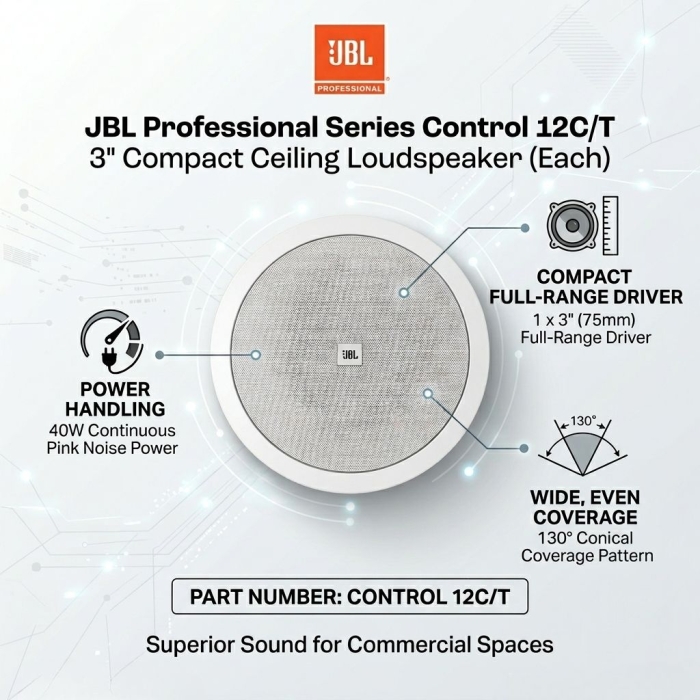

JBL Professional Series Control 12C/T 3" Compact Ceiling Loudspeaker (Each)
Quick Overview
- 1 x 3" Full-Range Driver
- 40W Continuous Power Handling
- 130° Conical Coverage Pattern
- Integrated Multi-Tap Transformer
- Supports 70V, 100V, or 8-Ohm Operation
PRODUCT OVERVIEW

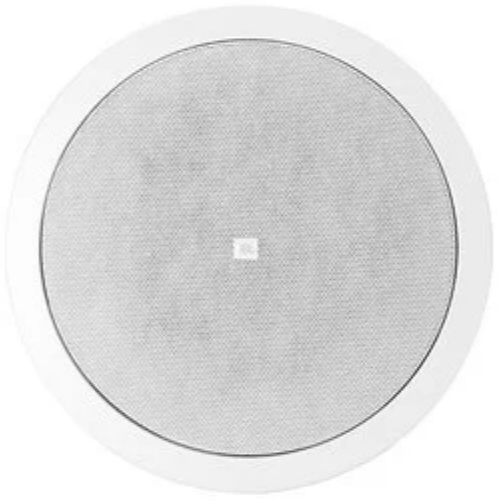

Compact Ceiling Loudspeaker

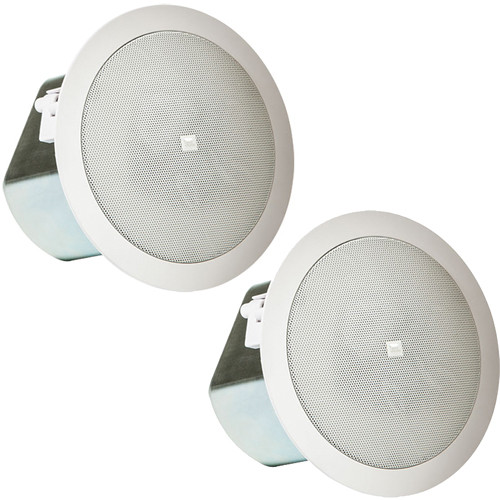

The white JBL Control 12C/T is a pair of Professional Series 3" 40W passive ceiling loudspeakers designed to deliver generous coverage and pleasing sound for low- to medium-volume applications such as offices, retail stores, hotels, and educational institutions.
Featuring a 3" full-range driver that handles up to 40W of continuous program power, the Control 12C/T is capable of producing a peak maximum SPL of 103 dB and a frequency range of 68 Hz to 17 kHz (-10 dB), while its 130° conical dispersion pattern ensures more coverage with fewer speakers.
The integrated 15W multi-tap transformer offers taps at 70V and 100V, plus a transformer bypass setting for low-impedance operation at 8 ohms. The UV-resistant, paintable ABS baffle comes with a pre-attached back can that enables fast and simple installation.
|
|
|
Features

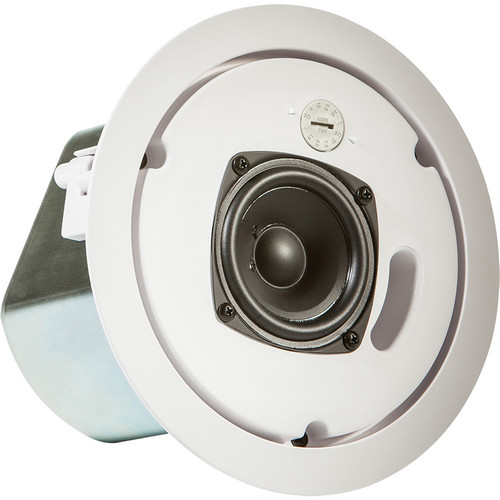

- 76 mm (3 in) full-range driver
- Blind-mount back for quick and easy install
- Combined 70V/100V and low-impedance direct operation
• 20 Watts at 8Ω nominal setting
• 15W multi-tap at 70V/100V - 68 Hz – 17 kHz bandwidth with wide 130° coverage
- White or black (-BK)
| Product Name | JBL Professional Series Control 12C/T 3" Compact Ceiling Loudspeaker (Each) |
|---|---|
| Weight | 1.600000 |
| Frequency Response | 95 Hz – 15 kHz |
| Frequency Range | 68 Hz – 17 kHz |
| Power Capacity | 40 Watts Continuous Program Power 20 Watts Continuous Pink Noise |
| Maximum SPL | 97 dB @ 1 m (3.3 ft) average, 103 dB peak |
| Impedance | 8 ohms (in direct/bypass 8Ω setting) |
| Sensitivity (SPL / 1 W @ 1 m) | 84 dB (1kHz - 16 kHz) |
| Mounting | In Ceiling Speaker |
| Dimensions | 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth) |
| Manufacturer | JBL |
| Color | White |
| Country of Origin | United States |
Product Datasheet
