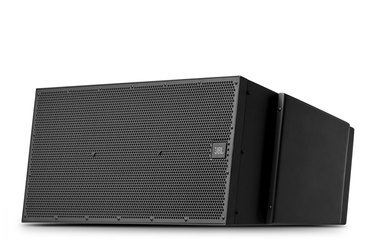

JBL VLA C2100 Two Way Full Range Loudspeaker (Each)
The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.
PRODUCT OVERVIEW
Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF
The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.
The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.
Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.
The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.
Features
- Compact line array module optimized for permanent install applications
- Advanced technology component transducers for low weight and high output
- Outdoor IP55 rated enclosure for protection from dust and water
- Comprehensive rigging points for creating a line array configuration
- Fiberglass box construction and weatherized components
- Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
- 100° horizontal coverage pattern
| Product Name | JBL VLA C2100 Two Way Full Range Loudspeaker (Each) |
|---|---|
| Weight | 37.700000 |
| Frequency Response | 109 Hz – 15.3 kHz |
| Frequency Range | 86 Hz - 18 kHz |
| Power Capacity | 800 W Continuous Pink Noise (3200 W peak), 2 hrs 400 W Continuous Pink Noise (1600W peak), 100 hrs |
| Maximum SPL | 131 dB Cont. Ave (2 hrs), 137 dB Peak |
| Impedance | 8Ω, 6.7Ω min @ 200 Hz |
| Sensitivity (SPL / 1 W @ 1 m) | 102 dB (85 Hz – 19 kHz) |
| Enclosure | Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing. |
| Dimensions | 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in) |
| Manufacturer | JBL |
| Color | Blue Pearl Fade Metallic Finish |
| Country of Origin | United States |
