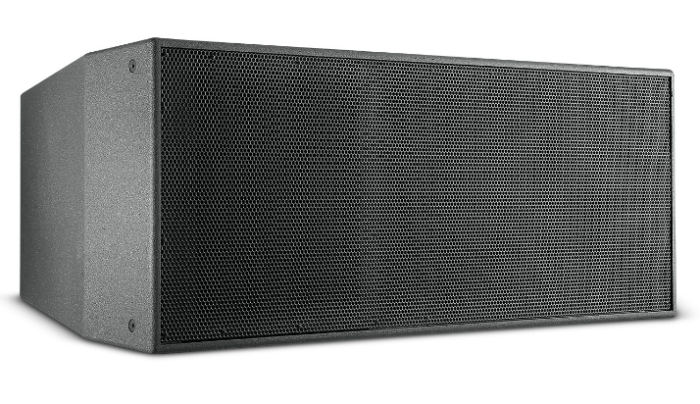

JBL VLA601 Three-Way Full Range Loudspeaker with 2 x 15" LF (Each)
This Model Has Been Discontinued! Please call at +971-4-3360300, & Email Us for a Replacement Model.
Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.
PRODUCT OVERVIEW
Three-Way Full Range Loudspeaker with 2 x 15" LF, 2 x 8" MF, 3 x 1.5" exit HF 60° Horizontal Dispersion
Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.
Features
- Line array module optimized for permanent install applications.
- The standard version features 3 HF drivers, 2MFdrivers, & 2 LF drivers
- Advanced technology component transducers for low weight and high output.
- Comprehensive rigging points for creating a line array configuration.
- Rugged DuraFlex™ exterior finish and weatherized components. JBL's WRC or WRX weather protections
also available.
| Product Name | JBL VLA601 Three-Way Full Range Loudspeaker with 2 x 15" LF (Each) |
|---|---|
| Weight | 100.700000 |
| Frequency Response | Frequency Response (-6 dB) 45 - 19.5kHz Frequency Response (-3 dB) 50 - 19.2kHz |
| Frequency Range | 41 - 20kHz |
| Power Capacity | LF: 1000W Continuous (IEC /100 hour) MF: 400W Continuous (IEC /100 hour) HF: 160W Continuous (IEC /100 hour) |
| Maximum SPL | 147.2dB (Preset: Flat) |
| Impedance | 4 ohms |
| Sensitivity (SPL / 1 W @ 1 m) | LF: 99dB/96dB MF: 107dB/104dB HF: 108db/111dB |
| Enclosure | 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass |
| Dimensions | 528.3mm x 1346.2mm x 767.1mm (20.8in x 53.0in x 30.2in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
