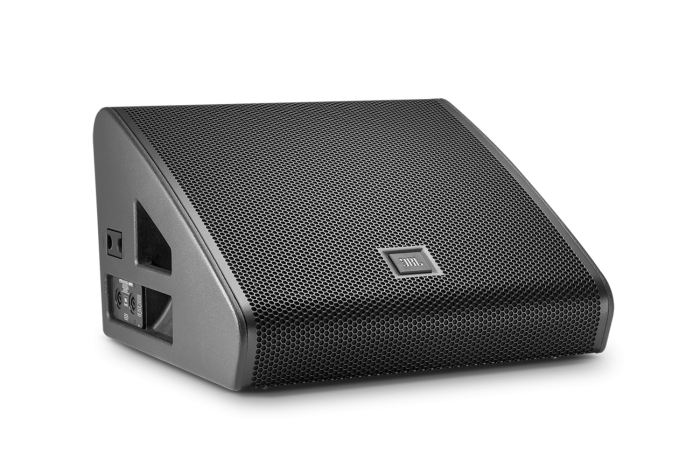

JBL VTX M20 Dual 10" Professional Stage Monitor Loudspeaker (Each)
Pay as low as per month in 4 equal installments interest free
Pay as low as per month in 4 equal installments interest free
We also accept
Elegant, low profile, compact design suitable for touring and high profile broadcast applications.
PRODUCT OVERVIEW
Features
- Elegant, low profile, compact design suitable for touring and high profile broadcast applications
- State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
- 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
- Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
 |
 |
| Product Name | JBL VTX M20 Dual 10" Professional Stage Monitor Loudspeaker (Each) |
|---|---|
| Weight | 23.133211 |
| Frequency Response | 55 Hz - 19.5 kHz |
| Frequency Range | 55 Hz - 19.5 kHz |
| Power Capacity | Passive: 1250 W Continuous (IEC / 100 hour) Active: LF: 1250 W Continuous (IEC / 100 hour) HF: 100 W Continuous (IEC / 100 hour) |
| Maximum SPL | 136dB (Preset: VTX M20 FR) |
| Impedance | Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms |
| Enclosure | 18 mm, 11-ply Finnish birch plywood |
| Dimensions | 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in) |
| Manufacturer | JBL |
| Color | Black |
| Country of Origin | United States |
Write Your Own Review
Product Datasheet
