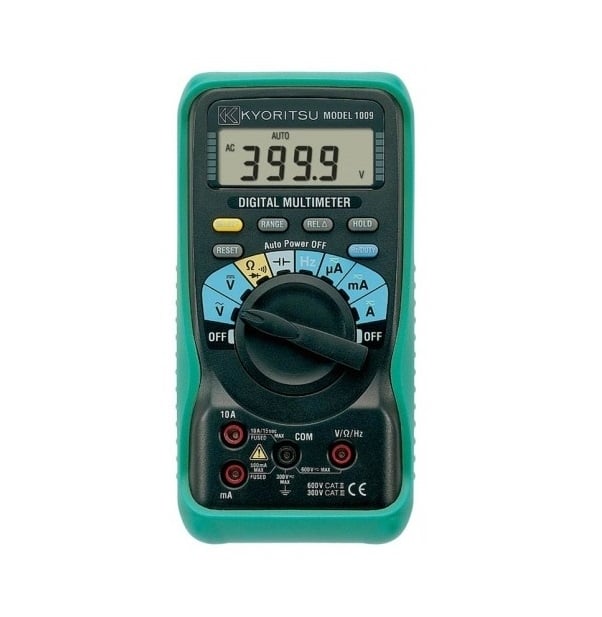

Kyoritsu Model 1009 Auto Range Digital Multimeter
Actual Stock Can Be Confirmed After Placing the Order.
SKU
1009
AED 227
AED 216
Pay 4 interest-free payments of AED 421.00.Learn more
Kyoritsu Model 1009 Digital Multimeter.- Without Case
Kyoritsu Model 1009 Digital Multimeter
• Display : 4000 counts.
• Auto range and manual range selector provided.
(with range hold feature)
• Resistance range provides audible continuity test.
• Automatically turns power off in about 30 minutes to conserve battery life.
• Direct current measurement up to 10A AC and DC.
• With Holster.
| Product Name | Kyoritsu Model 1009 Auto Range Digital Multimeter |
|---|---|
| Weight | 0.12 Kg |
| DC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V) |
| AC V | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 - 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V) |
| DC A | 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt , (400/4000µA)±1.0%rdg±4dgt , (40/400mA) ±1.6%rdg±4dgt (4/10A) |
| AC A | 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt , (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A) |
| Ω | 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ) |
| Capacitance | 40/400nF/4/40/100µF |
| Frequency | 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz |
| Manufacturer | Kyoritsu |
| Color | Green |
