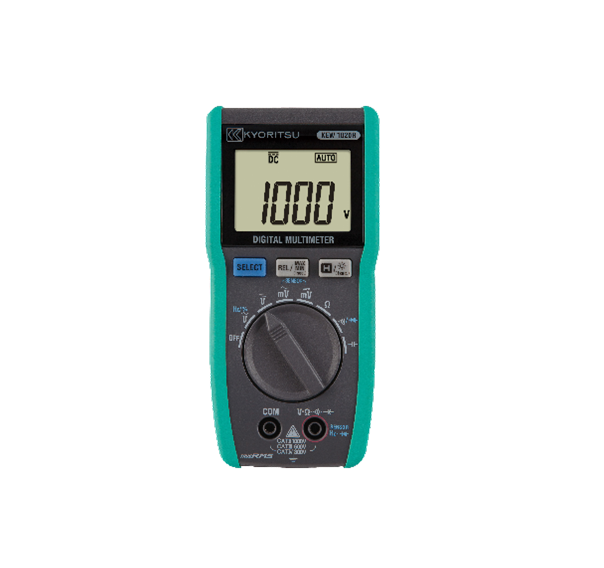

Kyoritsu Model 1020R Digital Multimeter- With Soft Case.
Kyoritsu 1020R Digital Multimeter
• Large display with 6000 counts and Backlight
• True-RMS
• MIN/MAX function
• Rugged and reliable
• Clamp sensor mode
• IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V
| Product Name | Kyoritsu Model 1020R Digital Multimeter |
|---|---|
| Weight | 0.113398 |
| DC V | 6.000/60.00/600.0/1000V (auto range), ±0.5%rdg ±3dgt (6/60/600V) , ±0.8%rdg ±3dgt (1000V) |
| AC V | 6.000/60.00/600.0/1000V (auto range), ±1.0%rdg ±3dgt [40 - 500Hz] (6/60/600V), ±1.3%rdg ±3dgt [40 - 500Hz] (1000V) |
| DC A | - |
| AC A | - |
| Ω | 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range), ±0.5%rdg ±4dgt (600Ω), ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ), ±1.5%rdg ±3dgt (40MΩ) |
| Capacitance | 60.00/600.0nF/6.000/60.00/600.0/1000µF, ±2.0%rdg ±5dgt (60/600nF), ±5.0%rdg ±5dgt (6/60/600/1000µF) |
| Frequency | 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt |
| Manufacturer | Kyoritsu |
| Color | Green |
