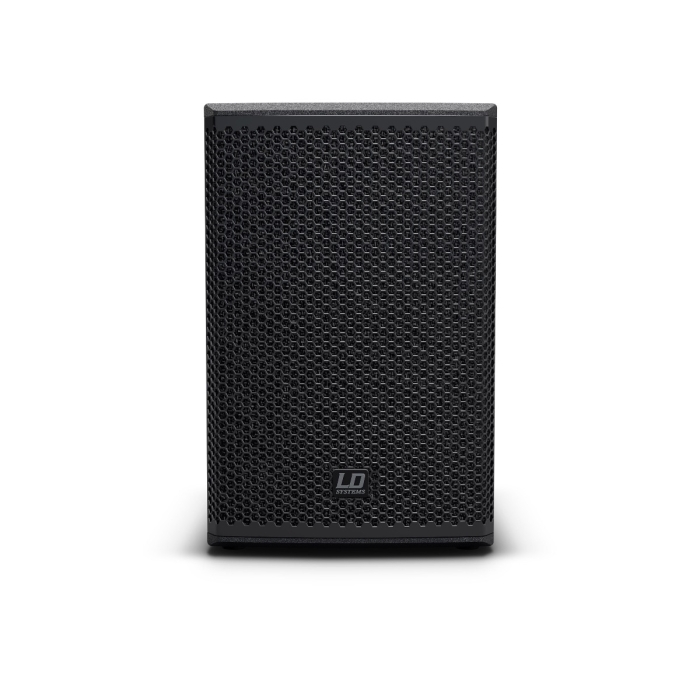

LD Systems MIX 10 A G3 Active 2-Way Loudspeaker with Integrated 7-Channel Mixer
The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.
Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.
The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
- 2 x 200 watts RMS class D amplification
- 10” custom woofer and 1” Celestion HF driver
- Integrated 7-channel mixer
- DSP with 16 FX Presets
- Bluetooth® audio streaming
- Standalone mono or stereo applications with LD MIX 10 G3
- Subwoofer and monitor outputs
- Rigid plywood enclosure
- Dual-Tilt pole mount for 0° or 5° orientation
|Product Name||LD Systems MIX 10 A G3 Active 2-Way Loudspeaker with Integrated 7-Channel Mixer|
|Frequency Response||65 - 20.000 Hz|
|Power Capacity||2 x 200 W|
|Maximum SPL||124 dB|
|Dimensions||Width 315 mm
Height 489 mm
Depth 307 mm
|Country of Origin||United States|
