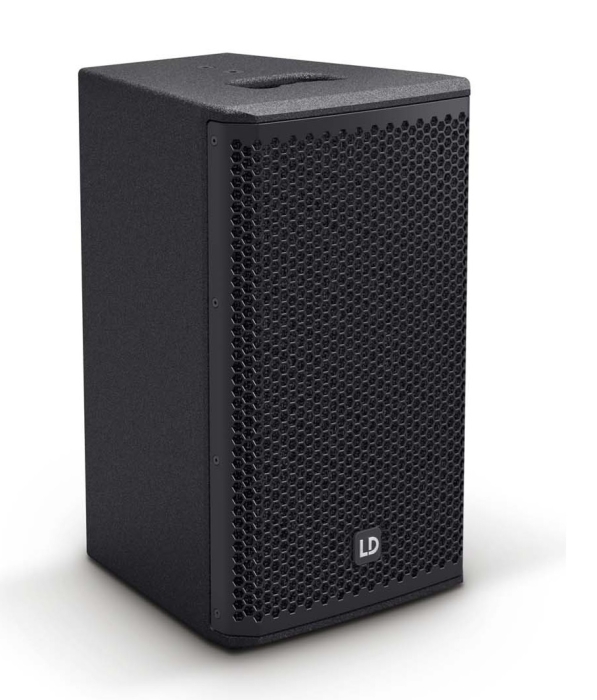

LD Systems STINGER 8 G3 2-Way Passive 8” Bass Reflex PA Loudspeaker
PRODUCT OVERVIEW
This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 8 G3 provides 250 watts of continuous power; the maximum sound pressure level is 118 dB. Its specially developed 8" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs.
The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The Stinger® 8 G3 is designed as a real all-round workhorse.
The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 8 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
- 2-way passive 8” bass reflex PA speaker
- 250 watts RMS power handling
- 119 dB maximum SPL
- 8“ custom woofer and BMS compression driver
- BEM optimized HF waveguide for uniform coverage
- Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
- Shock-resistant front grill provides maximum speaker protection
- 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
- Large selection of smart installation and transport accessories
| Product Name | LD Systems STINGER 8 G3 2-Way Passive 8” Bass Reflex PA Loudspeaker |
|---|---|
| Weight | 9.90 Kg |
| Frequency Response | 70 - 20000 Hz |
| Power Capacity | Load rating (RMS) 250 W Peak power 500 W |
| Maximum SPL | 119 dB |
| Dimensions | Width 270 mm Height 457 mm Depth 290 mm |
| Manufacturer | LD Systems |
| Color | Black |
| Country of Origin | United States |
