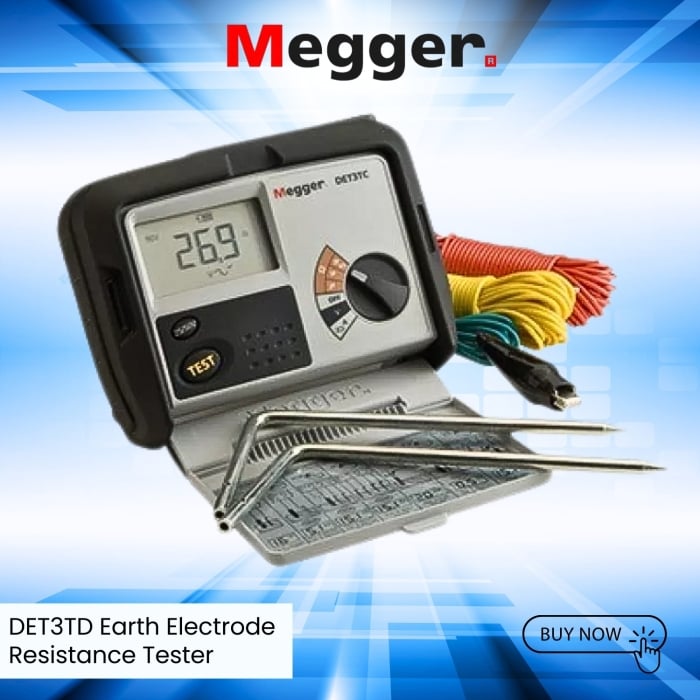

Megger DET3TD Earth Electrode Resistance Tester
The Megger DET3TD earth and ground tester is used to test for some of the dangers and potential cost implications of earth spike disconnection. It features a large selector switch which makes the selection of 2-pole or 3-pole test easy with gloved hands. The kit is a ground resistance meter for measuring ground resistance, voltage and current for digital ground and bond testing.
PRODUCT OVERVIEW
The Megger DET3TD earth and ground tester is used to test for some of the dangers and potential cost implications of earth spike disconnection. It features a large selector switch which makes the selection of 2-pole or 3-pole test easy with gloved hands. The kit is a ground resistance meter for measuring ground resistance, voltage and current for digital ground and bond testing. It measures voltage from 0V to 100V, ground current from 0.5mA to 19.9A and ground resistance from 0.01ohms to 2000ohms. The complete earth resistance tester kit includes test leads, stakes, batteries and calibration certificate. All these are delivered in a tough polypropylene carry case. A large, clear, easy to read LCD display and thumb-sized test button makes this instrument suitable to test the outdoor conditions.
Features and Benefits:
• LCD display with an analogue arc for trend viewing
• 2 and 3 point testing is available
• Selectable 25V or 50V output
• Complete with lead and stake kit
• Simple one-button operation
• Includes a hard carry case and stake wire kit
| Product Name | Megger DET3TD Earth Electrode Resistance Tester |
|---|---|
| Weight | 1.00 Kg |
| Battery | 8 Off AA Cells |
| Operating Temperature | -15°C and 55°C |
| Certificates | IP54 rated |
| Dimensions (WxHxD) mm | 203 x 148 x 77 mm (8 x 5.7 x 3.2 in) |
| Manufacturer | Megger |
| Country of Origin | United States |
