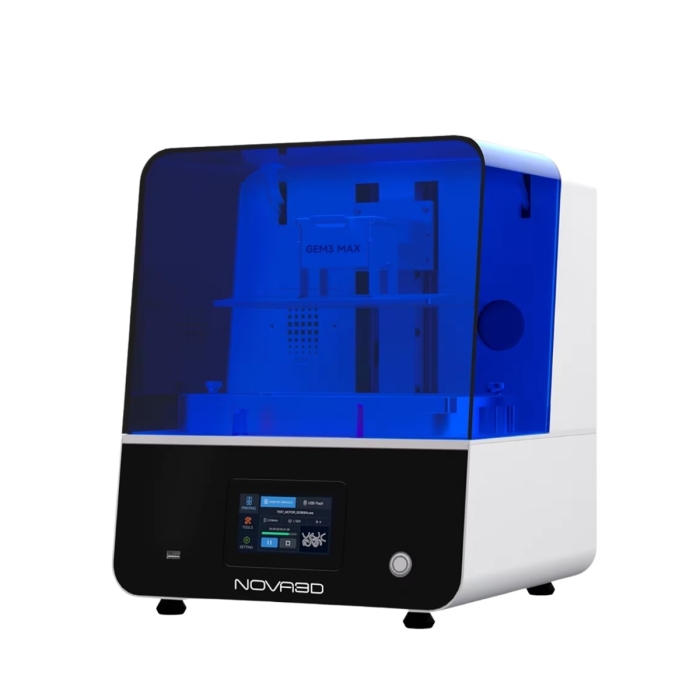

Nova3D GEM3 Max Smart Craft Jewelry Industry Micron-Level Precision Ultra-Compact 3D Printer
- ⦾ Ultra-high resolution: fine layer height (≈ 20 µm or more)
- ⦾ Ultra-high 16K resolution: 15120×6230, 14×19µm pixel size
- ⦾ Large build volume: 221×118×120mm
- ⦾ High-speed printing: up to 70mm/h
- ⦾ 7th-generation COB LED with light homogenizer
- ⦾ Industrial-grade Z-axis: ball screw with dual linear guides
- ⦾ Dual-end Z sensors for automatic calibration
- ⦾ Enclosed printing chamber for environmental stability
- ⦾ Air-cooled system for consistent performance
PRODUCT OVERVIEW
Introduction GEM3 Max—Precision Meets Efficiency
The Nova3D GEM3 Max is a professional resin 3D printer designed for high-precision applications requiring larger build volumes. Perfect for jewelry, dental, and industrial prototyping, the GEM3 Max delivers ultra-detailed models with smooth surface finishes and exceptional reliability, making it ideal for both production and complex prototyping workflows.
|
Advanced Mechanical Design Built with a ball-screw-driven Z-axis and dual linear guides, the GEM3 Max ensures stable and precise movement during printing. Its fully enclosed chamber minimizes environmental fluctuations, and dual-end Z sensors provide automatic calibration, guaranteeing consistent accuracy even in long-duration prints or batch production. |
 |
 |
Cutting-Edge Optical System The GEM3 Max employs a 7th-generation COB LED light source with a light homogenizer, delivering uniform exposure across the build platform. With a 16K monochrome LCD (15120×6230 resolution) and 14×19µm pixel size, it produces sharp, high-resolution details. Integrated air cooling ensures stable performance even during long prints or when using temperature-sensitive resins. |
|
User-Friendly Workflow The GEM3 Max is designed for efficiency and ease of use. It comes factory-calibrated and ready to print, with a 4.3-inch touchscreen interface for intuitive operation. It supports NovaMaker, ChituBox, Lychee Slicer, and Tango Slicer, offering flexibility in file preparation. Features like resin run-out detection and print resume after power loss minimize material waste and reduce print failure risk. |
 |
Applications & Output Quality
Highlight Feature:
- ⦾ Ultra-high resolution: fine layer height (≈ 20 µm or more)
- ⦾ COB LED light source with optical homogenizer
- ⦾ Ball screw–driven Z-axis with dual linear guides
- ⦾ Dual-end Z sensors for automatic calibration
- ⦾ Enclosed printing chamber for environmental stability
- ⦾ Resin temperature control/heating system for advanced material
| Product Name | Nova3D GEM3 Max Smart Craft Jewelry Industry Micron-Level Precision Ultra-Compact 3D Printer |
|---|---|
| Weight | 24.000000 |
| Speed | 70mm/h 20um~200um (20μm increments) |
| Connectivity | USB Flash Disk / WIFI / Ethernet |
| Machine Structure | Metal with Fiiber Glass |
| Printing Technology | Fused Deposition Modeling (FDM) |
| Printing Size | Resolution：15120*6230 Pixel Size：14*19um Build Volume：221*118*120mm |
| Printing Precision | ±0.15 mm or ±0.002 mm/mm (whichever is larger) |
| Printing Filaments | Dental Resin | Jwewlry Resin | Water-Washable Resin | Alcohol-Washable Resin |
| Operating System | Windows 8, Windows 10, Windows 11; Mac OS: support version 10.9 or later |
| Dimensions | Printer Dimensions：358*379*473mm Packing Dimensions：502*512*642mm |
| Manufacturer | NOVA3D |
| Color | Black |
| Country of Origin | China |
Product Datasheet
