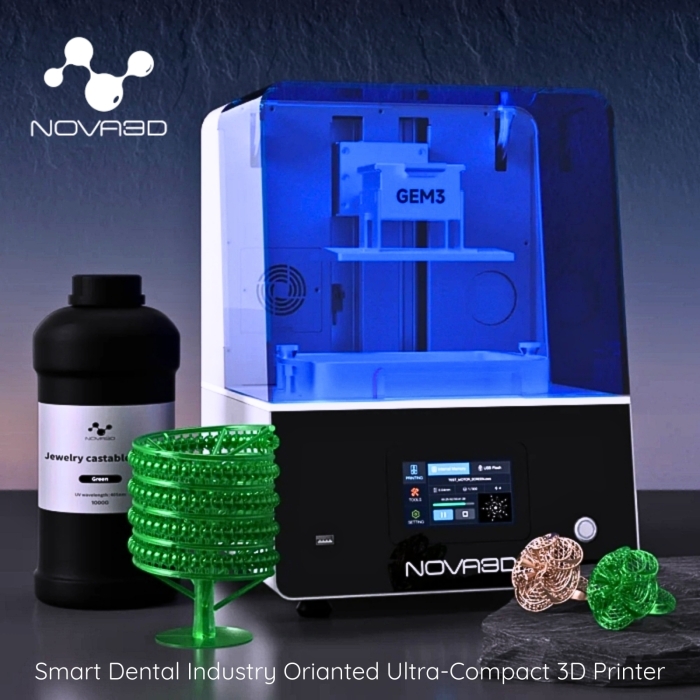

Nova3D GEM3 Smart Dental Industry Orianted Ultra-Compact 3D Printer

At the heart of the GEM3 Smart is a robust mechanical system built for stability and precision. A ball-screw–driven Z-axis with dual linear guides ensures minimal play and consistent layer registration, even during extended prints. The fully enclosed chamber helps maintain a controlled environment, reducing the impact of ambient fluctuations on print quality. Dual sensors on the Z-axis automatically check calibration at both ends, reinforcing stability and eliminating manual tweaking.

Optical & Illumination System

GEM3 Smart features a modern COB (Chip-On-Board) LED light engine combined with a homogenizing optical system to deliver ultra-uniform exposure across the build surface. This ensures consistent curing across the entire XY plane and minimizes typical LCD/LED artifacts. To support castable or temperature-sensitive resins, GEM3 Smart also integrates a resin heating / temperature control system (when needed), enabling you to work reliably with advanced materials even in cooler environments.

Workflow & Usability

Nova3D has thoughtfully streamlined the user workflow for GEM3 Smart. The printer arrives factory-leveled and calibrated, enabling plug-and-play operation from the first print. A sleek touchscreen interface, intuitive menu, and connectivity via USB/WiFi simplify file transfers and control. GEM3 is supported by slicing software platforms like NovaMaker and ChituBox, allowing users flexibility in preparing prints. Error detection features like resin run-out sensing, print interruption recovery, and real-time status alerts further reduce print failure risk and material waste.
