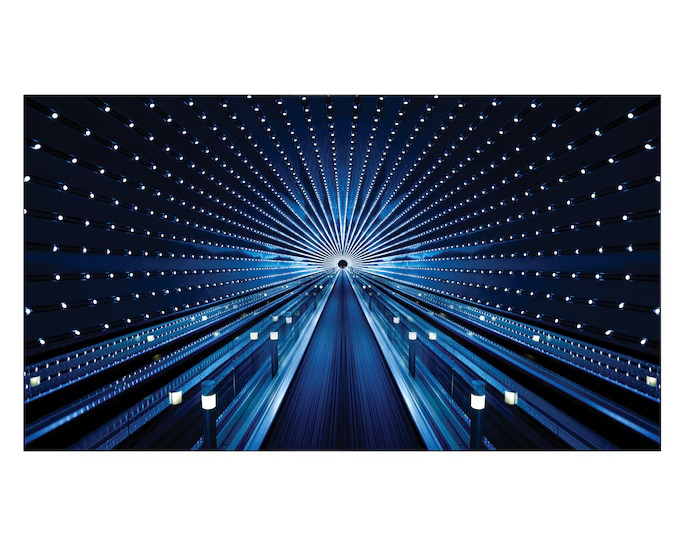

Samsung All-in-One 146" 0.84mm HD Non-Glare Ultra Narrow Bezel Flip-Chip RGB Video Wall
Quick Overview
- Full HD (1920 x 1080) Native Resolution
- LED HDR & AI Picture
- All-in-One dvLED Video Wall
- 3 x HDMI 1.4 | 1 x DisplayPort 1.2
- 500 nits Brightness
- No Wi-Fi or Bluetooth
```html
Samsung The Wall All-in-One – Product Description
Samsung The Wall All-in-One
A revolutionary Micro LED display solution engineered for corporate environments, luxury retail spaces, control centres and premium residential installations.
A New Standard in Premium Visual Communication

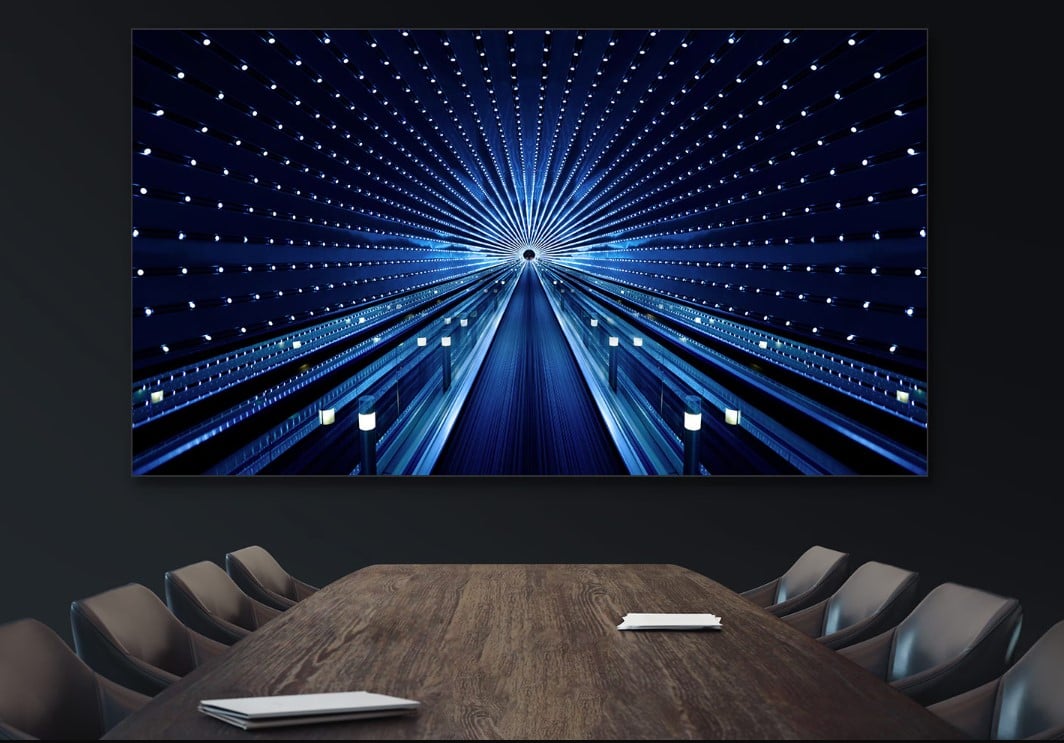

Samsung The Wall All-in-One redefines large-format display experiences by combining breakthrough Micro LED innovation with simplified deployment. Designed for executive boardrooms, showrooms, control rooms and luxury environments, it delivers exceptional visual impact without the complexity traditionally associated with LED installations.
From cinematic contrast and vibrant colour reproduction to AI-enhanced image processing and integrated control systems, every aspect has been engineered to provide an effortless premium display experience.
Why Professionals Choose The Wall
Every component has been designed to deliver extraordinary image quality, streamlined deployment and long-term reliability.
Premium Details That Define The Experience
Exceptional engineering, refined design and intelligent integration combine to create a truly all-inclusive display solution.
Intelligent Display Performance
Samsung combines advanced AI processing with precision Micro LED architecture to create extraordinary image performance.

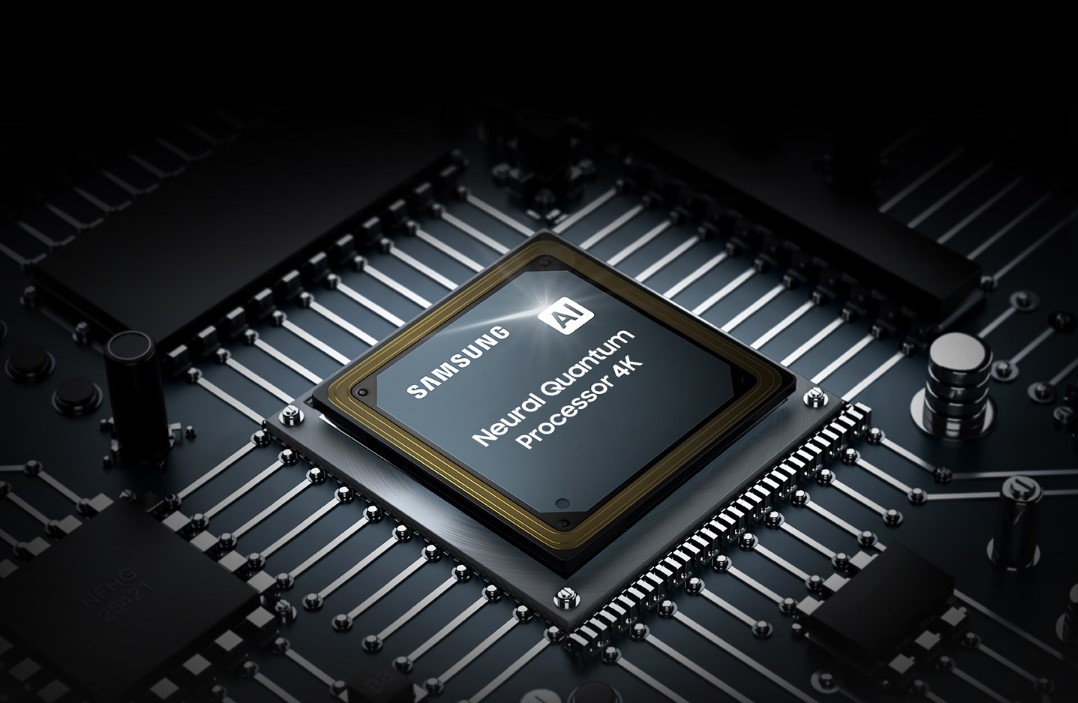

- Neural Quantum Processor 4K
- 20-bit colour processing
- Linear grayscale mapping
- MICRO HDR support
- 120Hz motion enhancement
Technical Specifications
Display
Micro LED Technology
4K UHD Resolution
HDR10+ Support
120Hz Motion Processing
Pixel Pitch
0.84 mm
1.26 mm
1.68 mm

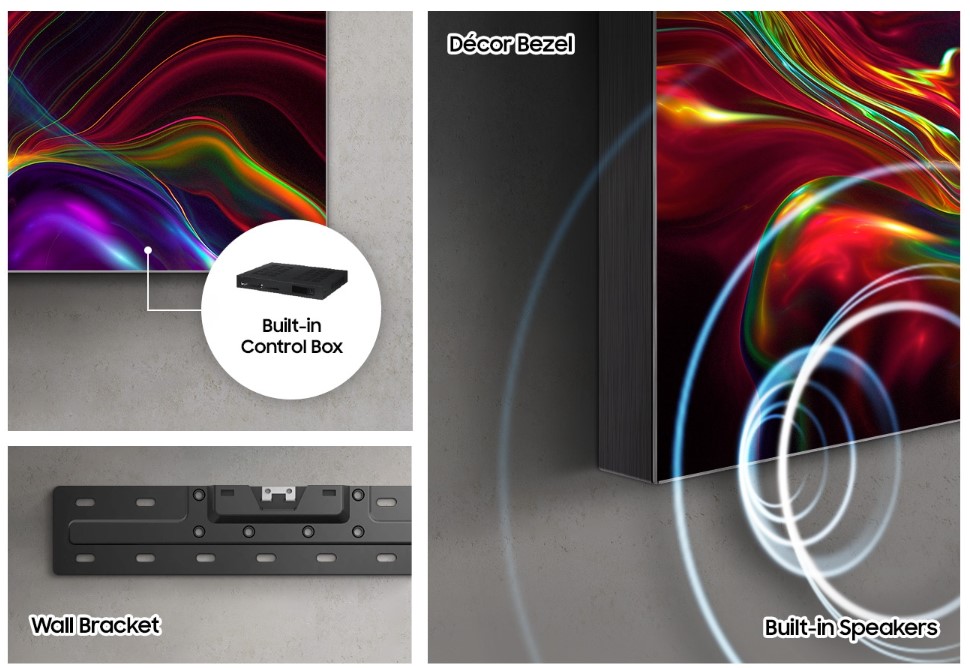

Installation
Pre-assembled Modules

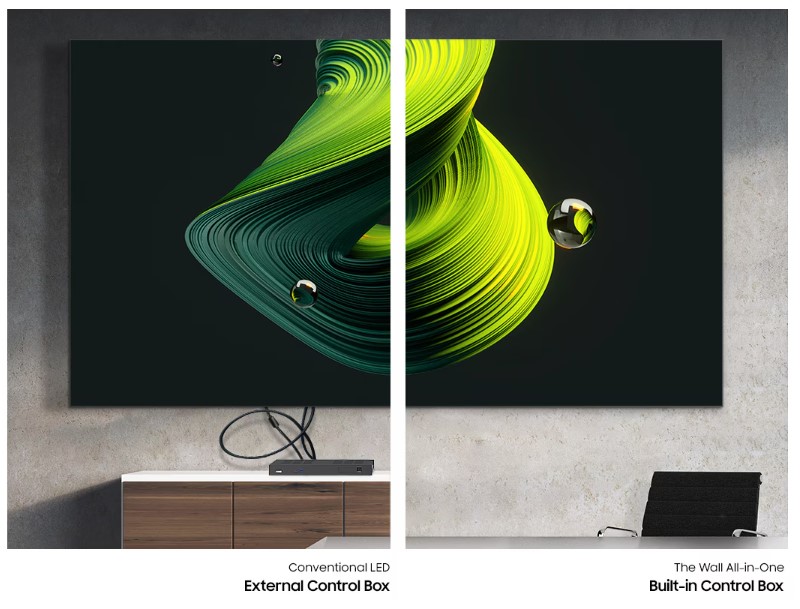

Integrated Control Box
Built-in Speakers
Operational Features
Continuous Commercial Operation
IP20 Indoor Rating
Long LED Lifetime
Transform Every Space with The Power of Micro LED
Samsung The Wall All-in-One delivers breathtaking visuals, simplified deployment and enterprise-grade reliability in one complete premium display solution.
Request a Quote```
| Product Name | Samsung All-in-One 146" 0.84mm HD Non-Glare Ultra Narrow Bezel Flip-Chip RGB Video Wall |
|---|---|
| Weight | 301.000000 |
| Screen Size | 146 Inch |
| Splicing Gap | Flip‑chip RGB LED signage panel (MicroLED class) |
| Backlight | Self‑illuminating LEDs (no separate backlight) |
| Aspect Ratio | 16:9 (3840×2160 resolution) |
| Contrast Ratio | Up to 24,000:1 (typical dynamic) |
| Resolutions | 3840 × 2160 (4K UHD) |
| Color depth | 16 bit internal profiling with 20‑bit processing pipeline |
| Body Material | Metal LED cabinet with integrated control box |
| Response Time | Not standardized (LED matrix drive; effectively instantaneous per LED) |
| Visual angle | ~170° H / ~155° V |
| Mechanical Life | ~150,000 hours regionally reported for modules |
| Input interface | 3× HDMI 2.0, 1× DP 1.2, USB 2.0 (×2) |
| Output Interface | Audio out (3.5 mm) / eARC (depending on build) |
| Panel Control | Built‑in Tizen control box |
| Third Party Control | Supported via RS‑232C (in), RJ45 (LAN) |
| Control Port Input | RS‑232C (in) |
| Signal Format | 4K UHD signals supported via HDMI / DisplayPort |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | ~1100 W (typical) for 146″ model |
| Max. Power Consumption | ~1700 W (for 146″ 4K UHD) |
| Standby Power Consumption | <0.5 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight) |
| Operating Humidity | 10 % to 80 % RH |
| Certifications | IEC/UL safety (62368‑1, 60950‑1), EMC Class A (varies by region) |
| Storage Temperature | –20 °C to +45 °C (approx) |
| Language Support | Multi‑language OS (English, Arabic, French, Spanish, etc.) |
| Display Colors | True RGB LED capable (internal processing 20‑bit) |
| Dimensions | ~3225.6 × 1814.4 × 49 mm (146″) |
| Package Weight | ~301 kg (146″) |
| Packaging Dimensions | 2000 × 2162 × 1000 mm (146″) |
| Voltage (V) | 100–240 V AC |
| Resolution | 3840x2160 (4K UHD) |
| Installation method | Pre‑assembled mounting: mount wall brackets → dock background plates → hang 3/4 preset modules (approx. 2 hrs). |
| CPU | Cortex A72 1.7GHz Quad‑Core CPU / Neural Quantum Processor 4K (AI image processing). |
| GPU | Integrated with Neural Quantum Processor (proprietary). |
| Operating System | Tizen 6.5 (commercial signage platform). |
| Led life time | ~150,000 hours (typical LED backlit lifetime). |
| Brightness | 500 nits |
| Built-In Speakers | Yes |
| Aspect Ratio | 16:9 |
| Bezel Width | 2.25mm(U/L), 1.25mm(R/B) mm |
| Contrast Ratio | 1200:1 |
| Manufacturer | Samsung |
| Color | Black |
| Country of Origin | Vietnam |
