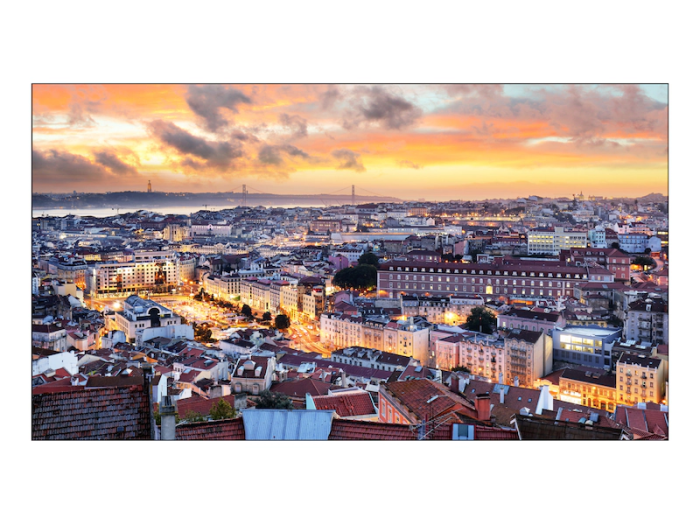

Samsung VH55C-E 55" HD Non-Glare Ultra Narrow Bezel LCD Video Wall
Quick Overview
- Extreme-Narrow 1.74mm Bezels
- IPS Panel with Wide Viewing Angle
- LAN & RS-232 Controllable
- 2 x HDMI | 1 x DisplayPort | 1 x DVI
- DisplayPort Output for Daisy Chain
Product Description
Samsung VH55C-E
A high-performance professional video wall display engineered for 24/7 operation, ultra-narrow bezels, and seamless large-scale visual experiences across commercial environments.
Engineered for Immersive Visual Communication
Samsung VH55C-E is designed to deliver seamless, high-impact visual performance for retail, corporate, control rooms, and public display environments.
Its ultra-slim bezel architecture ensures near-invisible seams when tiled, while Full HD resolution and IPS technology maintain clarity, consistency, and color accuracy from any viewing angle.
Why the VH55C-E Stands Out
Built for precision, durability, and visual continuity in demanding 24/7 environments.
Technical Specifications
Display
55-inch Panel
Full HD Resolution
IPS Technology
Operation
24/7 Continuous Use
Portrait & Landscape Support
Commercial Grade
Connectivity
HDMI
DisplayPort 1.2
RS232C Daisy Chain
Durability
IP5X Dust Protection
EMC Class B Certified
ISTA Tested Packaging
Build Impactful Video Wall Experiences
The VH55C-E delivers precision engineering, seamless visuals, and commercial-grade reliability for professional display environments.
Request a Quote| Product Name | Samsung VH55C-E 55" HD Non-Glare Ultra Narrow Bezel LCD Video Wall |
|---|---|
| Weight | 14.500000 |
| Screen Size | 55" |
| Screen Size | 55" |
| Splicing Gap | Extreme / Ultra‑narrow bezel: ~0.88 mm–1.74 mm combined (ultra‑thin seams) |
| Screen Type | LCD IPS panel with non‑glare/anti‑reflective surface |
| Backlight | LED backlight (commercial LCD) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Resolutions | 1920x1080 |
| Color depth | ~72 % NTSC color gamut typical (common for commercial video walls) |
| Body Material | Commercial signage enclosure (metal chassis typical for Samsung video wall; not explicitly stated) |
| Visual angle | 178° horizontal / vertical |
| Mechanical Life | Designed for 24/7 professional use; exact lifetime hours not specified |
| Input interface | RS‑232 (In/Out), LAN (RJ45), IR control supported |
| Output Interface | Compatible with third‑party control systems via RS‑232/LAN (e.g., Crestron/AMX) |
| Signal Format | 2× HDMI 2.0; 1× DisplayPort 1.2 (Input + DP Out); 1× DVI‑D; USB (service); Audio In/Out; RS‑232; IR In/Out |
| Power Supply | AC 100 - 240 V, 50/60 Hz |
| Max. Power Consumption | 250 W |
| Standby Power Consumption | less than 0.5W |
| Dimensions | 1217.4 x 681.1 x 46.4 mm |
| Package Weight | 21.4 KG |
| Packaging Dimensions | 1395 x 853 x 235 mm |
| Resolution | 1920x1080 (Full HD) |
| Brightness | 700nit |
| Built-In Speakers | No |
| Bezel Width | 1.74mm |
| Contrast Ratio | 1000:1 |
| Manufacturer | Samsung |
| Color | Black |
| Country of Origin | Vietnam |
