Soundcraft AES EBU 8+8 Out D Type Card with Word Clock For Si Series
Soundcraft AES EBU 8+8 Out D Type Card with Word Clock For Si Series. A D-Type connector based AES/EBU input/output card with 8 inputs and 8 outputs. A separate BNC connector for wordclock output is provided.
PRODUCT OVERVIEW
Soundcraft AES EBU 8+8 Out D Type Card with Word Clock For Si Series

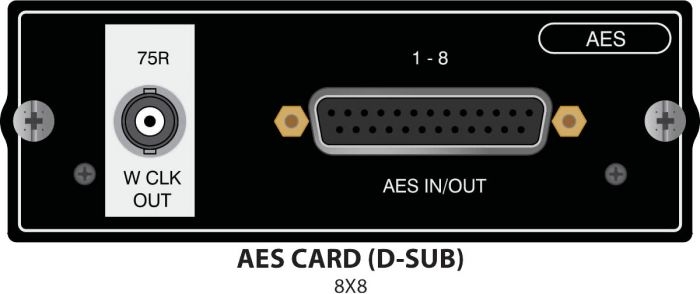

A D-Type connector based AES/EBU input/output card with 8 inputs and 8 outputs. A separate BNC connector for wordclock output is provided.
By adding option cards to the Si range of digital consoles, you can interface your desk with a multitude of analogue and digital systems, while expanding I/O count beyond that of the standard console configuration. Routing to and from the option cards is achieved via the Patching functionality on the console. Number of options cards that may be fitted per model are:
Features
- 1 card Si Compact, Si Expression, Si1
- 2 cards Si Performer
- 4 cards Si1+, Si2, Si2+, Si3, Si3+
| Product Name | Soundcraft AES EBU 8+8 Out D Type Card with Word Clock For Si Series |
|---|---|
| Weight | 0.453592 |
| Maximum Power Load: | Draws negligible low-voltage DC power (~3.3V–5V) directly from the console's expansion slot. |
| Step-Up Voltage Range: | Does not process or convert AC power. |
| Step Down Voltage Range: | Does not process or convert AC power. |
| Manufacturer | Soundcraft |
| Color | Black |
| Country of Origin | United States |
