Soundcraft CSB Optical MADI HD Card Multi or Single Mode
Soundcraft CSB Optical MADI HD Card Multi or Single Mode. It provides the link to the local rack's Standard MADI card. It also operates as the stageboxes 'intelligent detection system'. The I/O cards slotted into the stagebox have connections to its backplane, when the 'reconfig' button is pressed it detects the card type, confirms the configuration of the system and allows their audio signals to feed to the MADI link.
PRODUCT OVERVIEW
Soundcraft CSB Optical MADI HD Card Multi or Single Mode

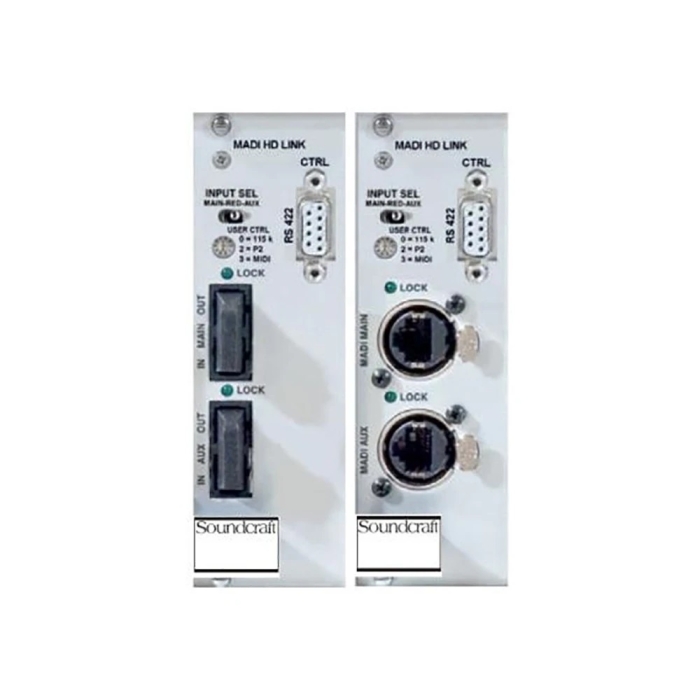

The MADI HD LINK card is available in two form factors (D21M & Vi Stage Box size) and two connection types (optical or CAT5). The optical card is available as multimode or single mode.
The MADI HD Link card will only ever be loaded into a stagebox. It provides the link to the local rack's Standard MADI card. It also operates as the stageboxes 'intelligent detection system'. The I/O cards slotted into the stagebox have connections to its backplane, when the 'reconfig' button is pressed it detects the card type, confirms the configuration of the system and allows their audio signals to feed to the MADI link.
The card operates in a 'slave' mode extracting the system clock from the incoming MADI feed (from the console). This clock is then distributed to the various I/O cards loaded onto its backplane. It operates at 48kHz.
| Product Name | Soundcraft CSB Optical MADI HD Card Multi or Single Mode |
|---|---|
| Weight | 0.000000 |
| Manufacturer | Soundcraft |
| Color | Grey |
| Country of Origin | United States |
