PRODUCT OVERVIEW

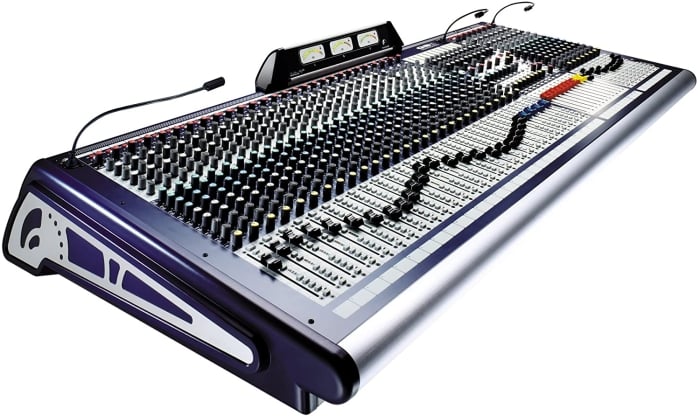

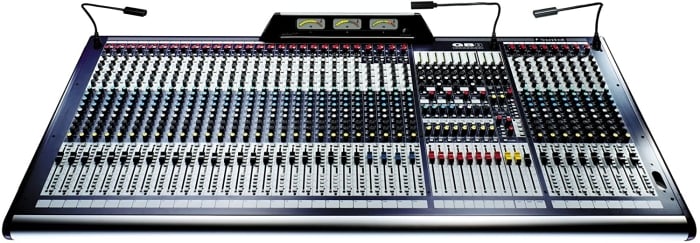

The Soundcraft GB8 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB8 is available in 16, 24, 32, 40 and 48 channel frames to suite specific needs in live sound mixing.

This model is configured with 24 input channels. 24 inputs feature microphone and line level connections, an additional 4 stereo inputs are provided as well. The stereo inputs (ST1 - ST4) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc. The console features 8 group outputs enabling routing to monitors, external recorders, etc. The GB8 series implements Soundcraft's GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles.

Additional features include Soundcraft's famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.

The GB8 series is available in a variety of frame configurations. This model features 24 mono and 4 stereo inputs. The GB8 series feature 8 group outputs for routing to external recorders, monitors, etc. The matrix output mixer provides added routing flexibility.

All mono inputs provide direct outputs for direct routing to recorders, mixers, etc.

Soundcraft's GB30 microphone preamplifier's provide an ultra low-noise floor while maintaining high output gain. The GB8 series features an integrated LED and VU meter bridge for accurate metering of input and output level.

Features

• 24 channel frame sizes
• 19 busses
• 4 full feature stereo channels
• 4 stereo returns
• 8 Aux sends (all are pre/post switchable)
• 8 sub groups (SWAP with all 8 Auxes)
• 11x4 output matrix
• Record output with limiter
• Alternate stereo output with limiter
• 1kHz oscillator
• Meterpod with 3 high definition LED VU meters (L/C/R)
• Internal jumpers switch pre-fade Aux sends to pre-EQ
• GB30 mic preamp and precision equalisation circuitry
• Direct outputs on every channel
• Talkback facility
• 100mm faders
• Switchable 48V phantom powering on every channel
• 18dB/octave high pass filter
• 4 mute groups
• 12-segment LED metering
