PRODUCT OVERVIEW

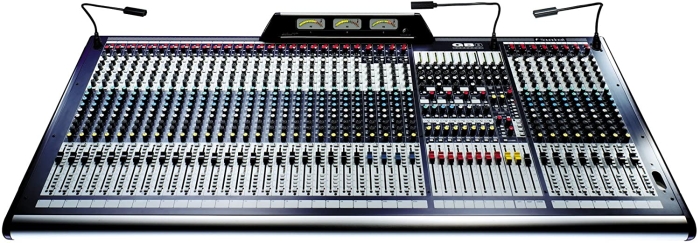

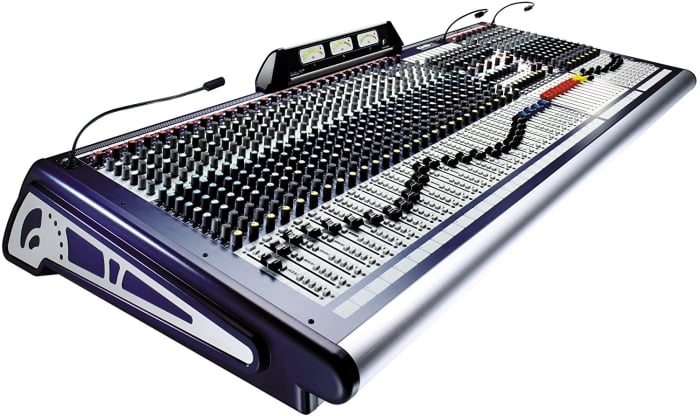

The Soundcraft GB8 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB8 is available in 16, 24, 32, 40 and 48 channel frames to suite specific needs in live sound mixing.

This model is configured with 32 input channels. 32 inputs feature microphone and line level connections, an additional 4 stereo inputs are provided as well. The stereo inputs (ST1 - ST4) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc. The console features 8 group outputs enabling routing to monitors, external recorders, etc. The GB8 series implements Soundcraft's GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles.

Additional features include Soundcraft's famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.

The GB8 series is available in a variety of frame configurations. This model features 32 mono and 4 stereo inputs. The GB8 series feature 8 group outputs for routing to external recorders, monitors, etc.

Features

• Dual purpose console
• Individually switched 48V phantom power on every mono input module
• 4 Full-feature Stereo channels
• 8 Aux sends (all switchable between pre/post fader operation)
• 8 Group sends (SWAP with all 8 Auxes)
• 4 Stereo returns
• 4 Mute Groups
• 11x4 Output Matrix
• Limiter on Record Output and Alternative Stereo Output
• GB30 mic pre-amp
• 4-band GB30 EQ
• 1kHz oscillator
• Meter Bridge with accurate VU meters for LEFT, RIGHT and CENTRE Outputs
• Integral power supply, with an external power supply link option

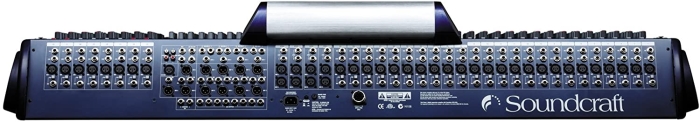

• All metal TRS jacks and Neutrik XLRs
• Direct outputs on all mono input channels
