PRODUCT OVERVIEW

The Soundcraft LX7 II series of professional analog consoles improves upon an impressive feature set, suited to meet the demands of professional recording and live sound engineers. The LX7 II series is available in 16, 24 and 32 input configurations. Every input features balanced 1/4" phone line level inputs, direct outputs are featured on the first 16 channels for recording and monitoring applications.

High quality redesigned microphone preamps are located on every input channel, as well as 1/4" TRS phone inserts for routing signal to external processors. All LX7 II configurations feature 4 sub group outputs that can be used for routing signal to monitors, recorders etc. 6 Aux sends are featured and provide routing to external effects and signal processors. The LX7 II series features the routing and functionality that will prove suitable for crucial recording and live sound reinforcement.

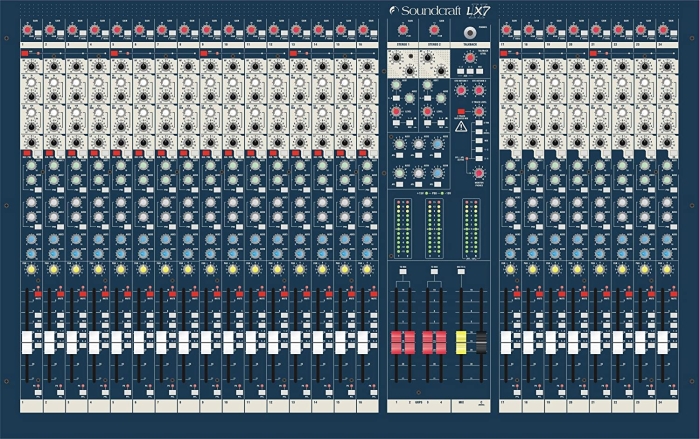

24 Input Configuration

The LX7 II console is available in three different channel configurations. This model features 24 input channels with 4 sub group outputs.

4 Sub Group Outputs

4 sub group outputs are featured and allow audio signals to be routed to multi track recorders and monitors.

Features

• 24 input channels
• 48v phantom power switched in blocks of four

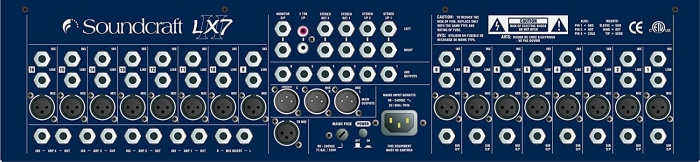

• 1/4" line input jack for balanced or unbalanced instruments
• GB30 padless mic preamp provides up to +15dBu input capability
• 18dB per octave highpass filter straight after preamp
• Pre-fade, pre-EQ (but post highpass filter) insert point
• Direct outputs on all but the last 8 channels
• Premium mic pres
• Enhanced, switching EQ section
• 6 flexible aux sends
• Pre-fader, post-EQ soloing
• LED doubles as a peak indicator
• Stereo input section
• Group, master, and control room sections
