Soundcraft MSB-16i 16 Channel Compact Digital Stagebox with Remote Controlled

PRODUCT OVERVIEW

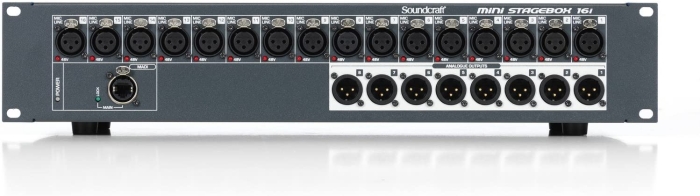

The Mini Stagebox 16i from Soundcraft offers multiple channels of remote controlled I/O for Si Series products—including the Si Impact mixing console—and is well suited for live sound engineers, houses of worship, bands, clubs, and corporate events. The Mini Stagebox requires only 2 RU of rack space, yet provides 16 recallable, high-quality, Studer-designed microphone preamp inputs, and 8 balanced line outputs, all remotely controlled from the console.

The Mini Stagebox 16i comes fitted with a single MADI over RJ45 connector, eliminating the need for expensive and heavy analog cable snakes for the stage to the front-of-house mixing position. The RJ45/Cat5 connector allows for cable runs up to 328' (100m) between the stage and front-of-house.

Connects to any of the Soundcraft Si Expression, Si Compact, Si Performer, Si Impact Series consoles via a MADI card fitted to the optional card slot

Requires only 2 RU of rack space and provides 16 recallable mic/line inputs and 8 balanced line outputs

Soundcraft Mini Stageboxes offer remarkable value while maintaining the industry-leading performance that Soundcraft live solutions are known for. Renowned Studer-designed mic preamps deliver warm, rich sound for live performances and recording events.

Features

• 16 Remote-controlled mic preamps, 8 XLR analogue line level outputs, and a single MADI connection
• RJ45/Cat5 connectivity, for 100M runs between stage and mixing console (328 feet)
• Dedicated XLR mic inputs can be Remotely controlled with the Sound craft Si Series of mixers
• Studier-designed preamps deliver exceptional sound quality, convenience and robust ease-of-use
• 2U rack mount design
