PRODUCT OVERVIEW

32CH MADI + 32CH USB Si Option card for simaltaneous Stagebox and Record

By adding option cards to the Si range of digital consoles, you can interface your desk with a multitude of analogue and digital systems, whilst expanding I/O count beyond that of the standard console configuration. Routing to and from the option cards is achieved via the 'Patching' functionality on the console. Further cards are always in development and will provide various solutions for interfacing onto emerging networks or devices.

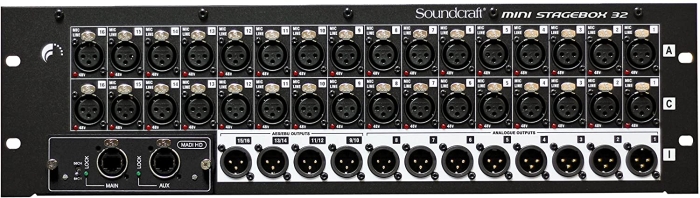

The mini stage box 32 (3U) provides 32 analogue inputs and 8 analogue line outputs, with 4 pairs of AES outputs, providing a total I/O capacity of 32 inputs and 16 outputs. They connect to any of the sound craft Si expression, Si compact, Si performer, Si Series and VI series consoles via a MADI card fitted to the option card slot.

Features

• The new Mini stage box provides a simple solution to stage connectivity offering a lower-cost option for many systems where the modularity and configurability of the larger systems are not required
• Mini stage box 16 (2U) model providing 16 analogue inputs and 8 line outputs making a 16 x 8 Matrix
• The mini stage box models contain an integral PSU so are completely self-contained and sit comfortably stage-side
• Both models are supplied with the stage box card installed, plus the corresponding card for an Si Series console (VI console MADI cards sold separately)
