PRODUCT OVERVIEW

Soundcraft UI 12

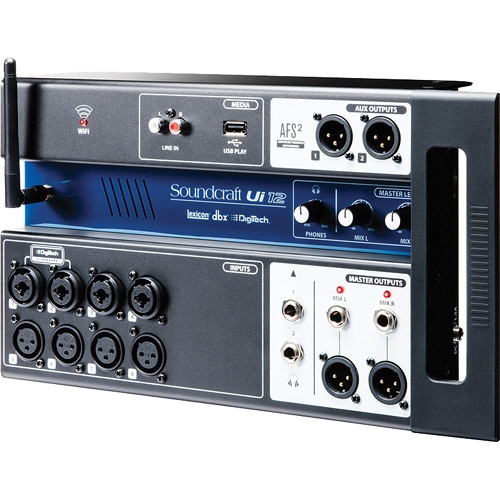

The Ui12 from Soundcraft is a 12-input remote-controlled, fully recallable digital mixing system, housed in a compact, road-rugged stagebox format. With built-in Wi-Fi, cross-platform compatibility, and the ability to be controlled by any connected device via standard web browser, the Ui12 offers a full-featured, flexible remote mixing solution for a wide variety of live sound reinforcement applications.

The Ui12 features cross-platform compatibility with iOS, Android, Windows, Mac OS, and Linux devices, and can use up to 10 control devices simultaneously. In addition, the mixer features signal processing from dbx, DigiTech and Lexicon, including dbx AFS2 feedback suppression, DigiTech amp modeling, and more. It has fully recallable and remote-controlled mic gain and phantom power, along with 4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on all input channels. The mixer also features 31-band graphic EQ, noise gate, and compressor on all outputs, plus real-time frequency analyzer (RTA) on all inputs and outputs.

In the I/O department, the Ui12 boasts four XLR combo mic/line inputs, four XLR mic inputs, two channels of Hi-Z/instrument inputs, as well as a stereo RCA line input. A 2-channel USB media player is included, along with 2 balanced XLR Aux outputs, two 1/4" headphone outputs with level control, plus balanced stereo XLR and 1/4" main outputs. Two-channel USB audio supports playback for MP3, WAV and AIFF formats.

Features
