Tascam TM-80 Studio Condenser Microphone
The TM-80 is a condenser microphone designed and priced for home recording. It features an 18-mm aluminum diaphragm with a cardioid pickup pattern that is ideal for anything from vocals to acoustic instruments.
PRODUCT OVERVIEW
Listen to a sound example for US-4x4 and TM-80
Here’s a sound sample of music created with a Tascam US-4x4 audio interface and Tascam TM-80 microphones. The track includes acoustic guitar and vocals and has been produced by the Japanese composer Masaku Murata.
He used three TM-80s for the acoustic guitar: two were placed in front of the guitar, one pointing at the center and the other one pointing at the bridge. The third TM-80 was placed farther away for ambience. Vocals were picked up by a fourth TM-80. For mixing, Murata used Sonar Platinum with its included plugins and ProChannel effects. No additional plugins were used for the mix.
Features at a glance
- 18-mm, pure aluminum diaphragm
- Cardioid polar pattern
- Frequency response: 20 Hz to 20 kHz
- Sensitivity: –38 dB ±2 dB (0 dB = 1 V/Pa at 1 kHz)
- Phantom power required: 9–48 V DC
- Output impedance: 200 Ω ±30 % (at 1 kHz)
- Load impedance: >1 kΩ
- Maximum SPL: 136 dB (at 1 kHz, 1 % THD)
- S/N ratio: 77 dB
- Housing: Die cast zinc
- Dimensions (W × H × D): 48 mm × 165 mm × 48 mm
- Weight: 300 g (mic body only)

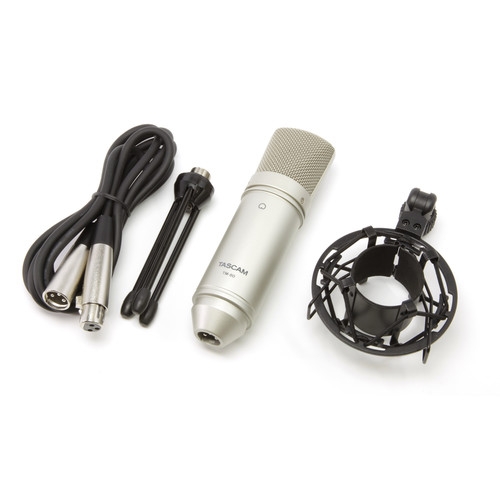

- Includes: elastic shockmount, mini desk stand, cable (1.8 m XLRM–XLRF)
| Product Name | Tascam TM-80 Studio Condenser Microphone |
|---|---|
| Weight | 1.00 Kg |
| Bluetooth | No |
| Nominal Impedance | 200 Ohms ± 30% at 1 kHz |
| Frequency Response | 20 Hz to 20 kHz |
| Power Input | 1,850mW |
| Dimensions | ø: 1.89 x L: 6.5" / ø: 48 x L: 165.1 mm |
| Sensitivity | -38 dB at 1 kHz |
| Manufacturer | Tascam |
| Color | Black |
| Country of Origin | United Arab Emirates |
