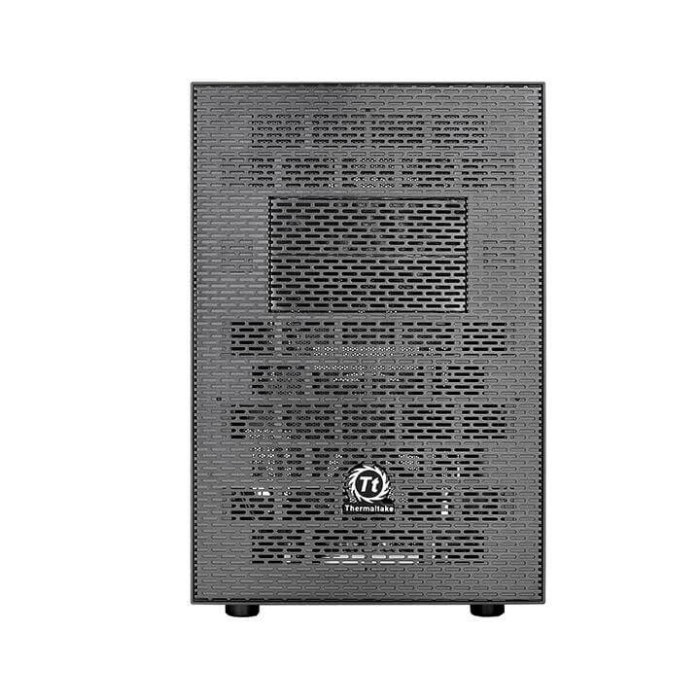

Thermaltake Core X1 ITX Cube Chassis

Actual Stock Can Be Confirmed After Placing the Order.
SKU
CA-1D6-00S1WN-00
Price Match Request

This Model Has Been Discontinued! Please call +971-4-3360300 or Email Us for Replacement Model

Pay 4 interest-free payments of AED 421.00.Learn more

Core X1, the first ITX chassis of Core X Series presented by Thermaltake, is a cube case offering endless stackable capacity and expandability for enthusiasts to create massive liquid cooling systems, utilize as a file server as well as accommodate dual systems.

Stackable for Enthusiasts
With its endless stacking design, the Core X1 is in a class above the rest. Virtually limitless utility is possible; it offers an expandable system allowing enthusiasts to incorporate externally-modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 540mm on the front side.

Remarkable Expansion
Designed for high-end gaming system compatibility, the Core X1’s modular drive racks allow gamers to easily install up to six data storage devices with triple PCI configuration space. VGA of up to 400mm in length, and a tower CPU cooler as high as 200mm. Even with a high-wattage PSU stretching to 220mm in length, it still leaves plenty of space for cable management.

Excellent Ventilation
The Core X1’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated, including DIY/AIO liquid-cooling systems and air-cooling units. Two 120mm fan are preinstalled on the front and rear to reassure and guarantee the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 200mm fans on the top panel.

Chambers Concept
Optimized for space management, the Core X1 is divided into two main chambers: the upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.

Fully Modular Design
A “2+4” drive bay concept design for storage devices makes setup super easy and flexible. In addition, a customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit their particular needs.

Interchangeable Window and I/O Panel
Users can customize the chassis for the best viewing presentation with an interchangeable window and I/O panel design.
More Information
Product Name Thermaltake Core X1 ITX Cube Chassis
Case Type ITX
Material SPCC
Motherboards MITX
Cooling System Front (intake) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) Rear (exhaust) : 120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays -Accessible : 2 x 5.25’’ -Hidden : 3 x 3.5’’ or 2.5’’ (HDD Cage), 1 x 2.5’’ (M/B Tray)
Expansion Slots 3
I/O Ports USB 3.0 x 2, HD Audio x 1
Dimensions 426 x 280 x 471 mm
Weight 4.08 Kg
Manufacturer Thermaltake
Color Black
